Specifications

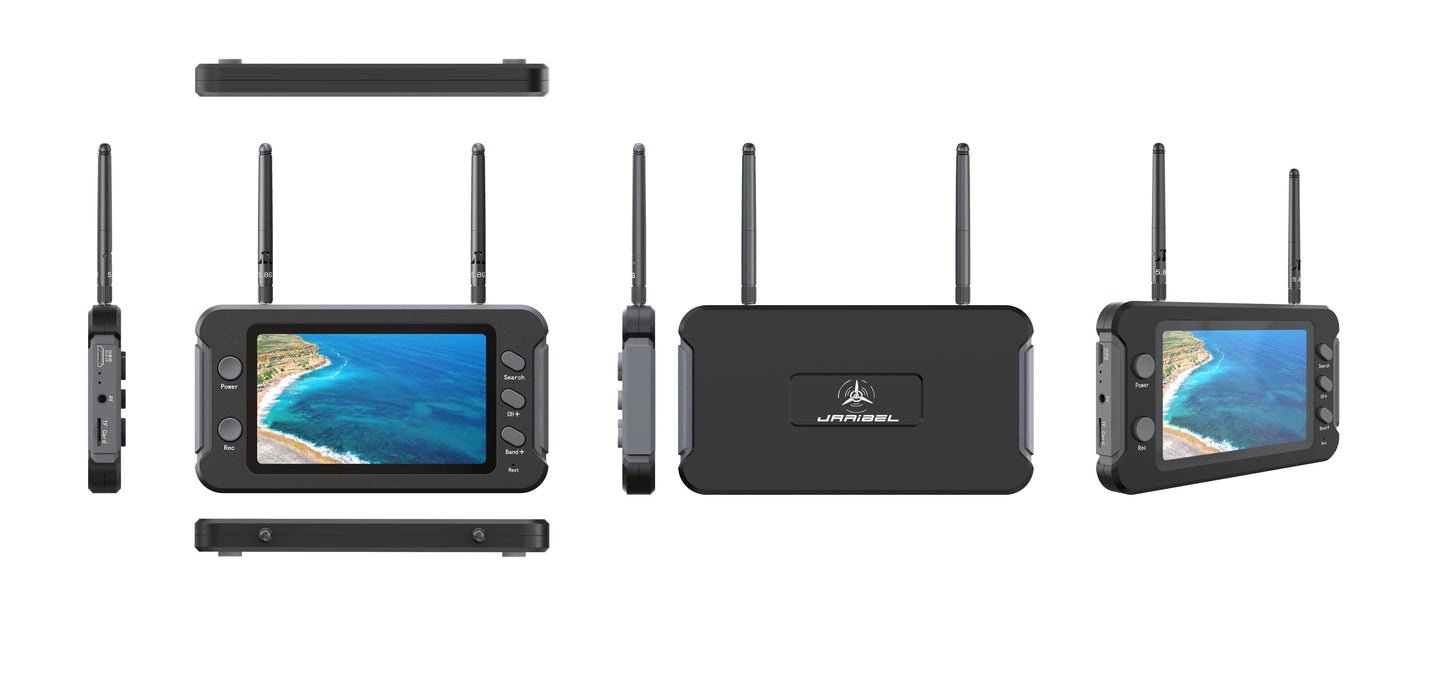

- Model: JribeL 4.3" Monitor
- Frequency: 5.8G
- Channel: 40CH
- Aspect Ratio: 16:9
- Resolution: 800*480
- Brightness: 500cd/m2
- Video Recording Modes: DVR(VGA/D1/HD)
- Format: MJPEG AVI
- Time: Off/3/5/10 min
- Sound: On/Off
- Battery: 3.7V 1200mAh
- TF Card: Up to 32G
- Connector: 3.5mm jack: Audio-Out / AV-in
- Antenna Type: RPSMA male
- Working Voltage: DC 5V/2A(USB) DC 5-23V
- Languages: English/Chinese
- Frame rate: 30fps
- Weight: 159g
- Working temperature: -10℃ ~ +65 ℃
- Size: 146x80x13mm
- Package Includes: 1*Monitor, 2*5.8G Antenna, 1*XT60 Expanded Cable, 1*USB Cable
Frequency Table
| Band | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
| Band A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| Band B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| Band E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| Band F | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| Band R | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
