Review by Jim T(Administrator of RCgroups.com) :
http://www.rcgroups.com/forums/showthread.php?t=2679041Conclusion
There is a lot to like about this unit. If your going to have an LCD like this you have to have diversity. The ability to utilize those two receivers when using your goggles is great. The built in lipo is also very handy and I really like that I can plug in an external lipo if needed. With a battery life of around 3 hours it lasted as long as I personally needed it and then some. The micro SD slot is accessible and visible, so it's easy to get in and out and know you have one in there. I also really like the hard plastic hood. The speakers are also great if wearing headphones bothers you. Finally, the most important thing for me is the DVR. It's super simple to turn on and off.
The only issue I had was the screen would not turn off for me at one point. If this happens to you be aware that there is a reset button on the left side of the unit near the AV out port. It is the type you need to press in with a needle or toothpick.
Notice: Before you use it, you should format your SD card to FAT32. There is a screen protector with H on screen, you can remove it.
The only issue I had was the screen would not turn off for me at one point. If this happens to you be aware that there is a reset button on the left side of the unit near the AV out port. It is the type you need to press in with a needle or toothpick.
Description:
- Brand Name: Jaribel
- Item Name: LCD5802D Monitor
- Built-in 5.8Ghz Dual diversity receiver automatically for best reception
- Built-in 2CH 5.8Ghz AV output and 1CH AV input
-
Built-in high performance Li-POLYMER Battery
: 2000mAH/7.4V -
Work status OSD display
: RSSI indication ; Battery indicator; Channel indication - A key to automatic signal search
- Support Chinese and English menu
- Format: JPEG, AVI
-

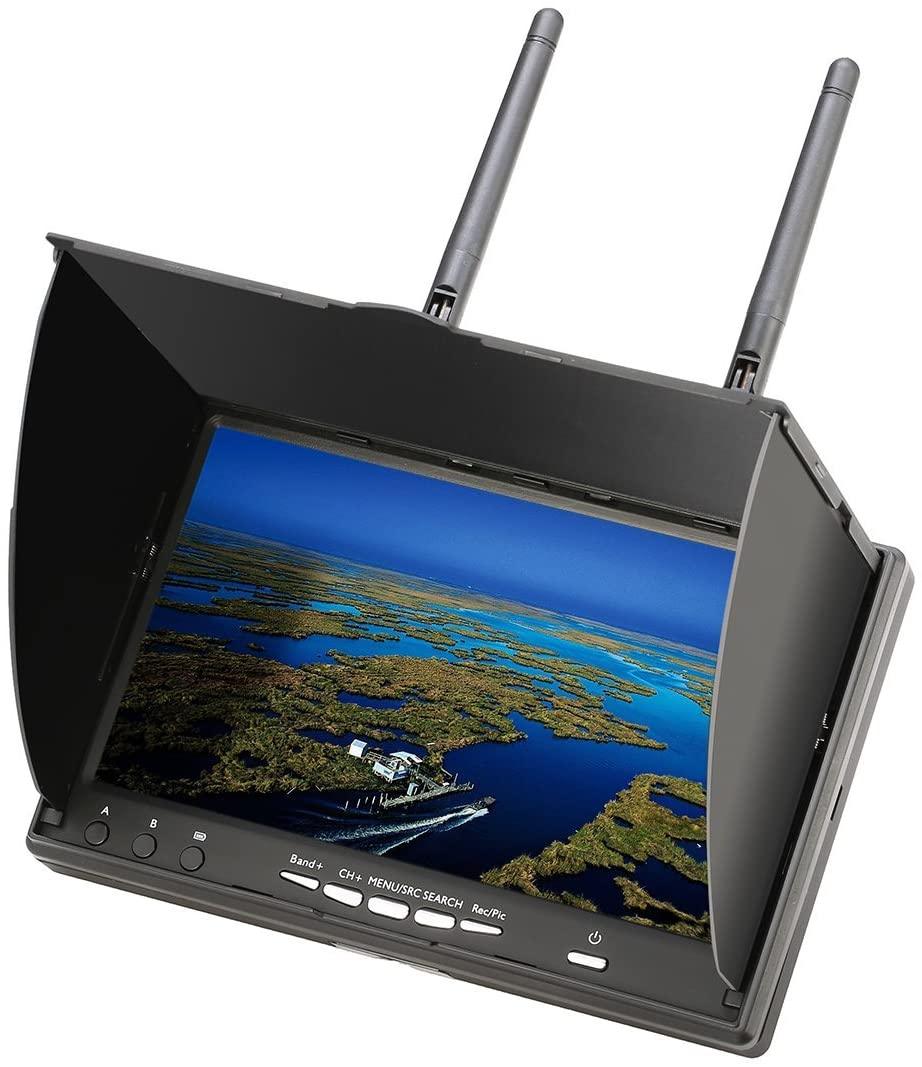

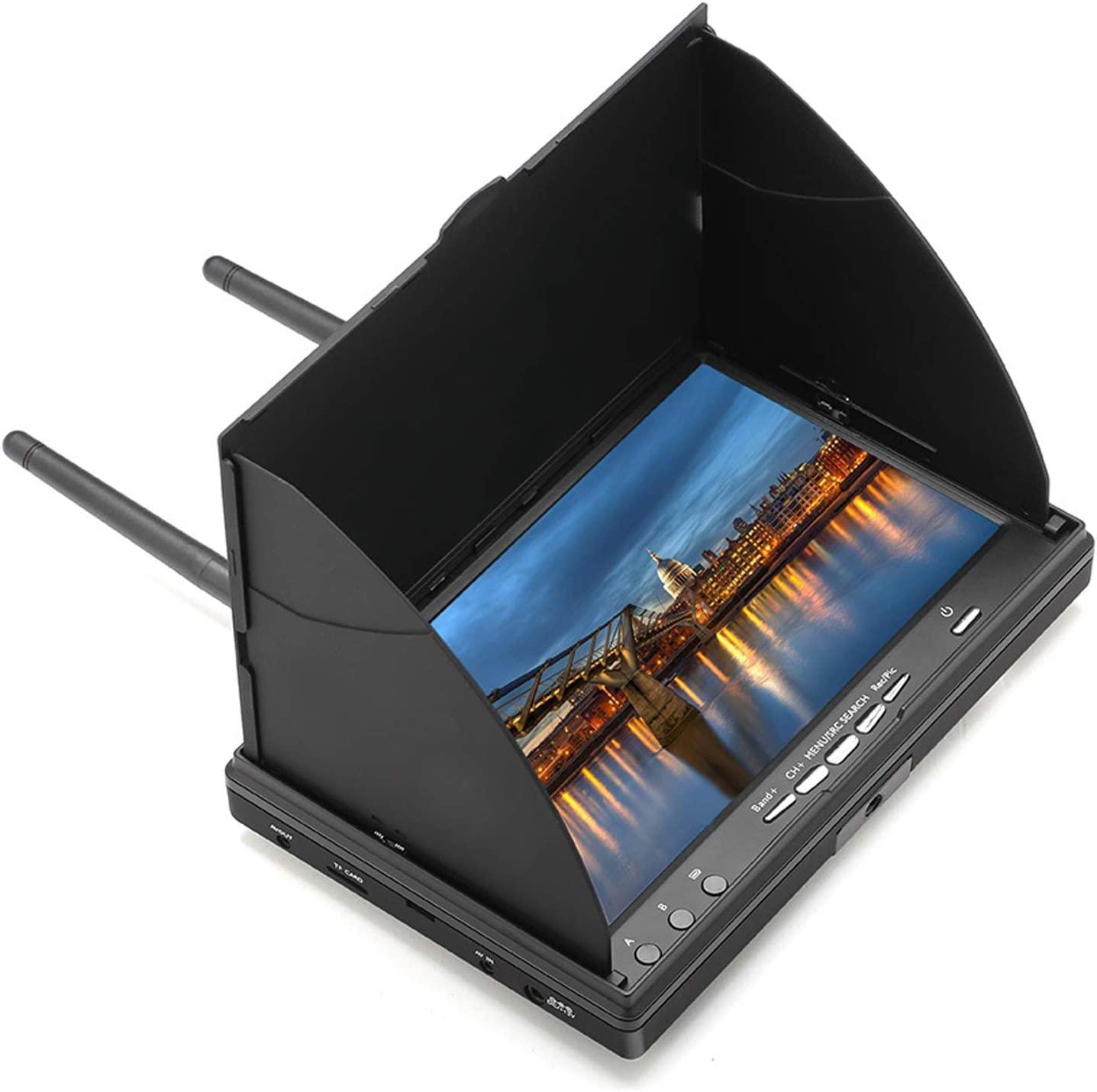

Screen size
: 7” -
Screen type
: TFT LCD Screen/long life, LED backlight - Resolution: 800*480
-
Brightness
: 600cd/m2 -
View Angle:
-
Size
: 180mm x 120mm x 25mm( Note: Sunshield height: 110mm -
Working Voltage:
-
Power Consumption
: max 650 mA @12V -
Battery charging current
: 850mA @12V ( max ) -
Working temperature

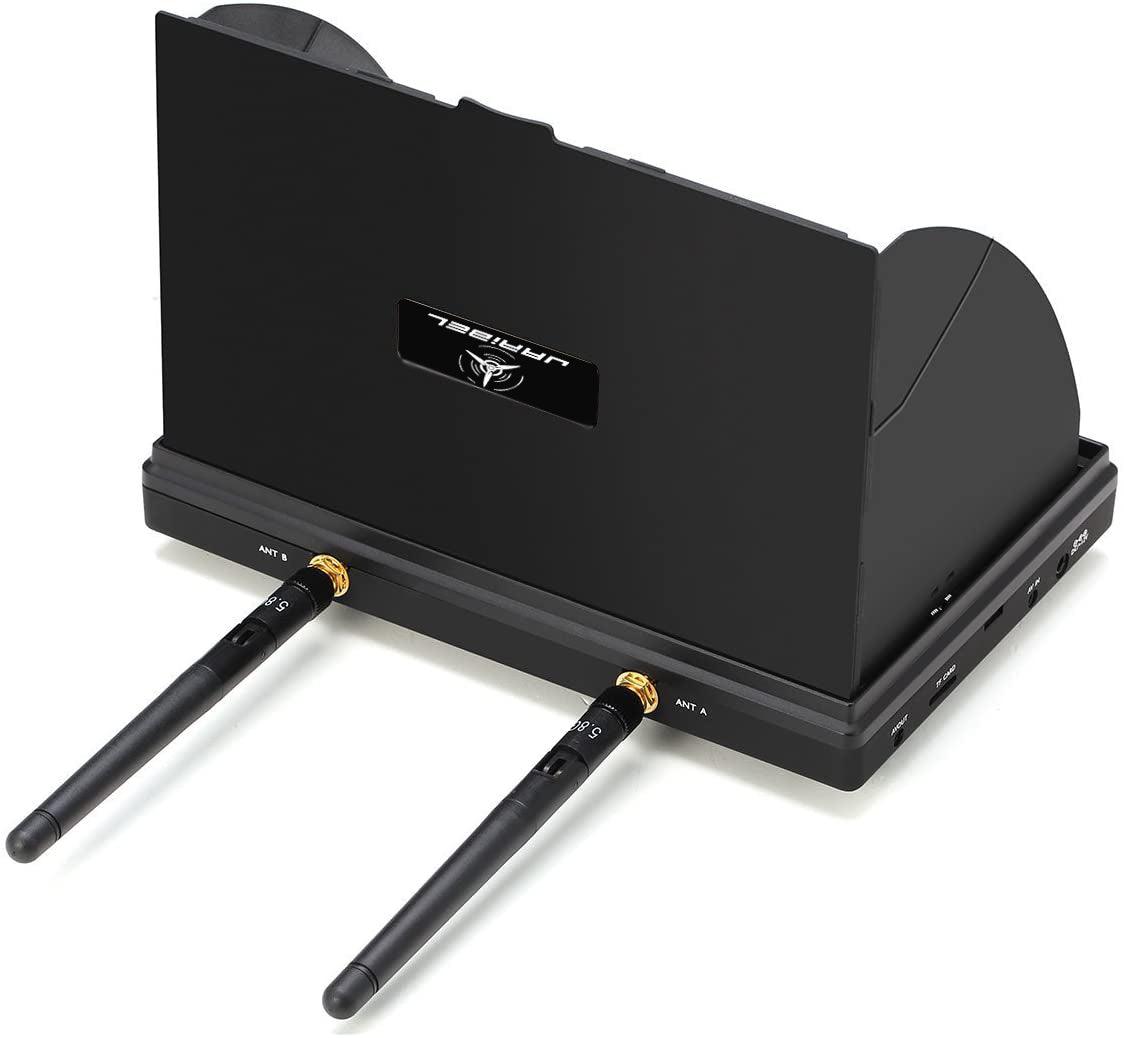

: -10℃~+ 65 ℃ - Connectors:RP-SMA female(outer needle)
- Antennas Connectors:RP-SMA male (inner hole)
- Support up to 32G , C10 SD Card.
Features:
- With DVR function
- Built-in Dual Receiver for best reception
- Dual buffered AV outputs
- Not affect by 2.4GHz R/C Radios
- AV Receiver with Diversity inputs
- Small, light weight, durable
- 5 Bands and total 40 Channels
- Built-in battery , easy to carry and outdoor use
-
A key to automatic signal search
, Simple operation -
Work status OSD display
: Always be aware of the device working condition.
Notice: It can't receive 2 different channels at the same time
Band and Channel selection
| CH | CH 1 | CH 2 | CH 3 | CH 4 | CH 5 | CH 6 | CH 7 | CH 8 |
| GROUP | ||||||||
| A | 5865 MHZ | 5845 MHZ | 5825 MHZ | 5805 MHZ | 5785 MHZ | 5765 MHZ | 5745 MHZ | 5725 MHZ |
| B | 5733 MHZ | 5752 MHZ | 5771 MHZ | 5790 MHZ | 5809 MHZ | 5828 MHZ | 5847 MHZ | 5866 MHZ |
| C | 5705 MHZ | 5685 MHZ | 5665 MHZ | 5645 MHZ | 5885 MHZ | 5905 MHZ | 5925 MHZ | 5945 MHZ |
| D | 5740 MHZ | 5760 MHZ | 5780 MHZ | 5800 MHZ | 5820 MHZ | 5840 MHZ | 5860 MHZ | 5880 MHZ |
| R | 5658 MHZ | 5695 MHZ | 5732 MHZ | 5769 MHZ | 5806 MHZ | 5843 MHZ | 5880 MHZ | 5917 MHZ |

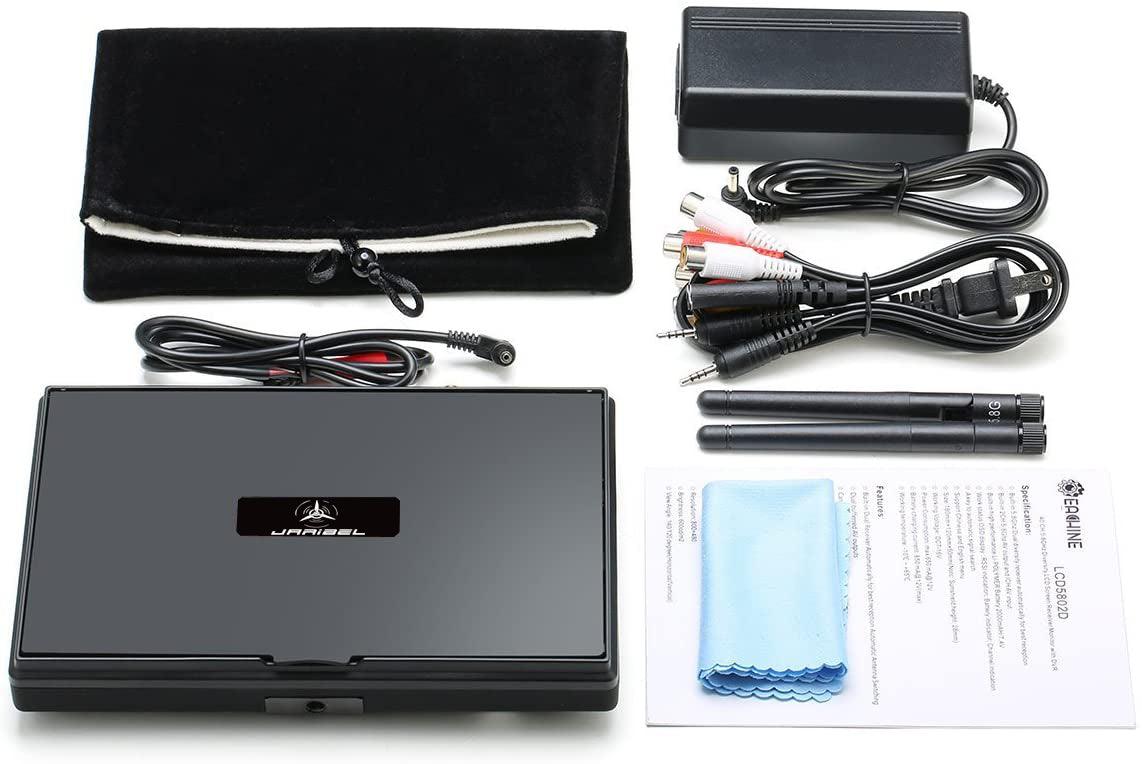

Package Included:

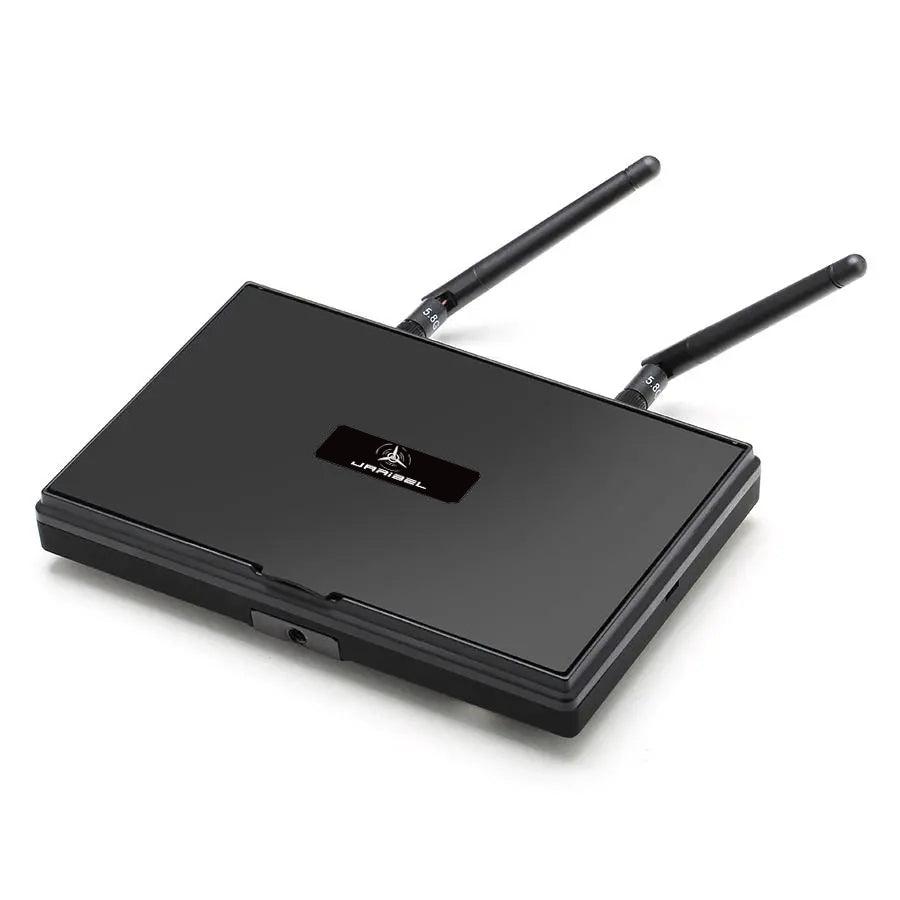

- 1 x 7" LCD Screen Receiver Monitor with built in Rechargable Battery
- 2 x 5.8G Antenna
- 1 x AV Cable
- 1 x Charger
