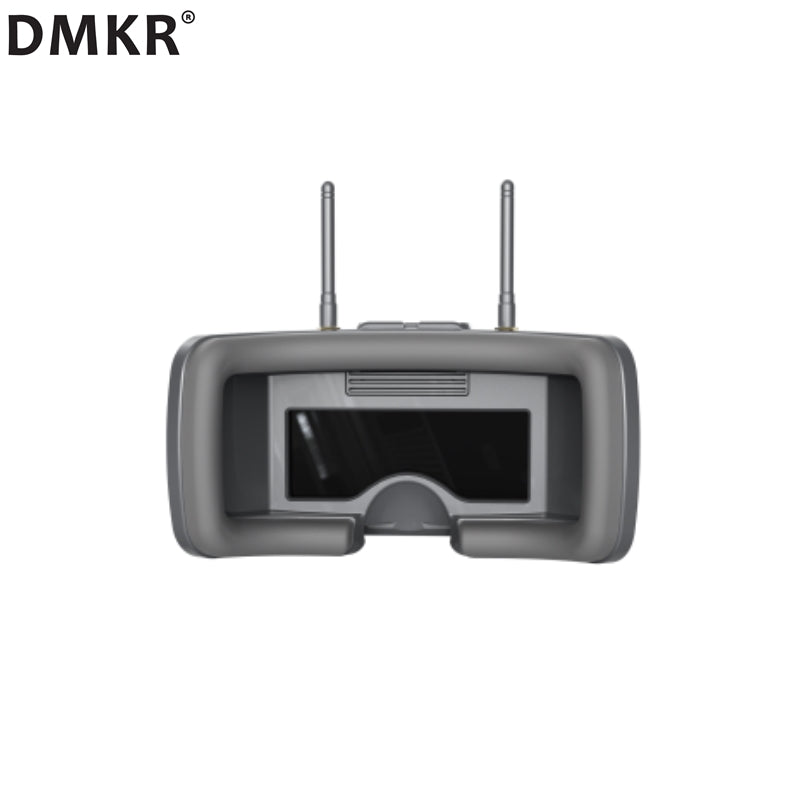

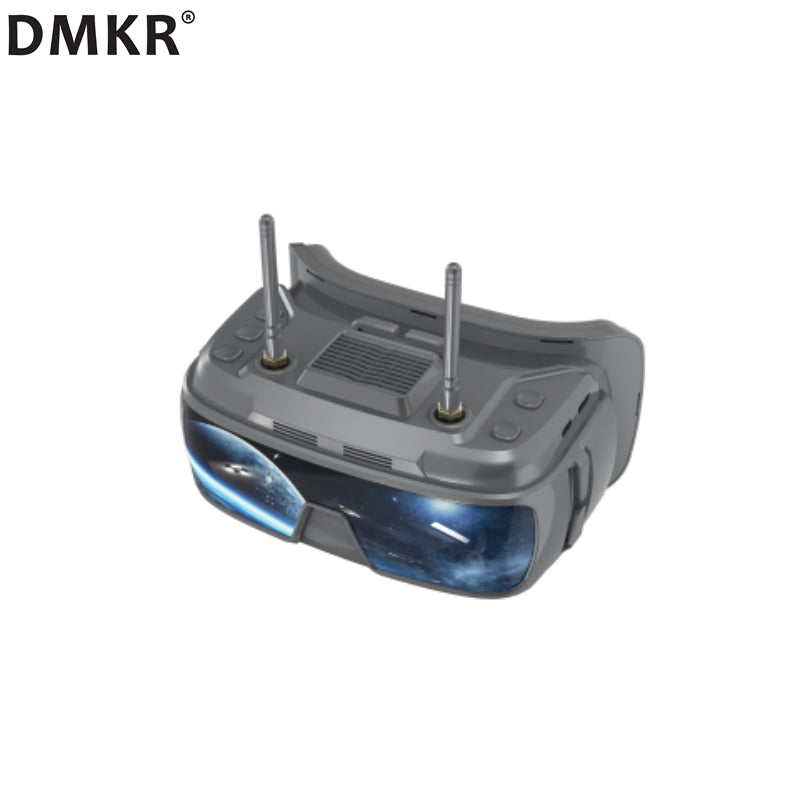

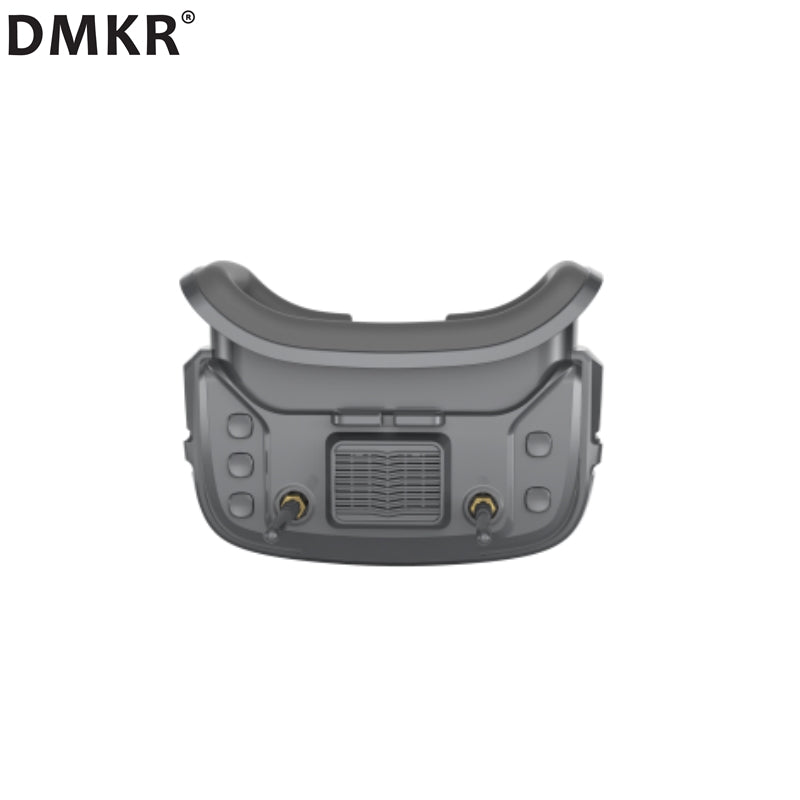

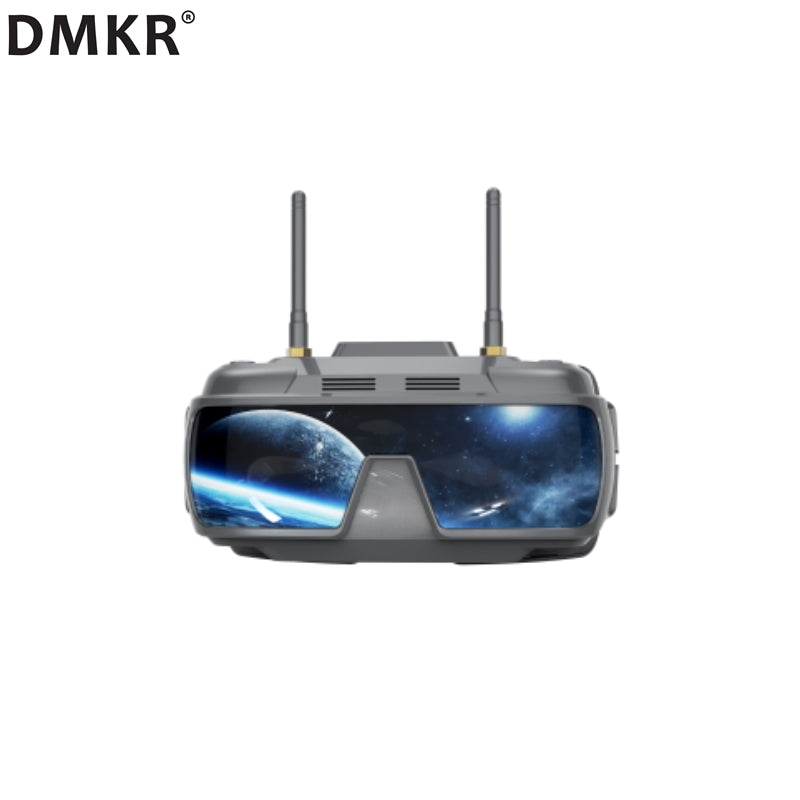

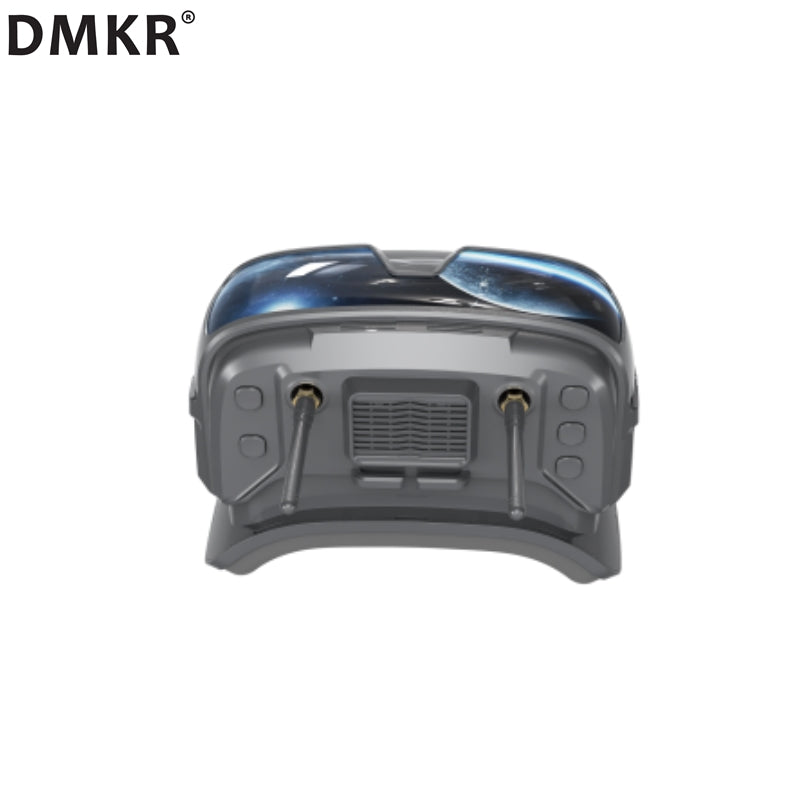

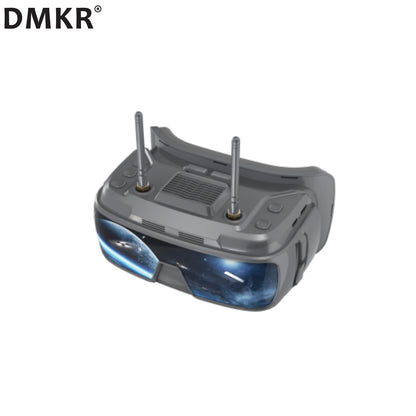

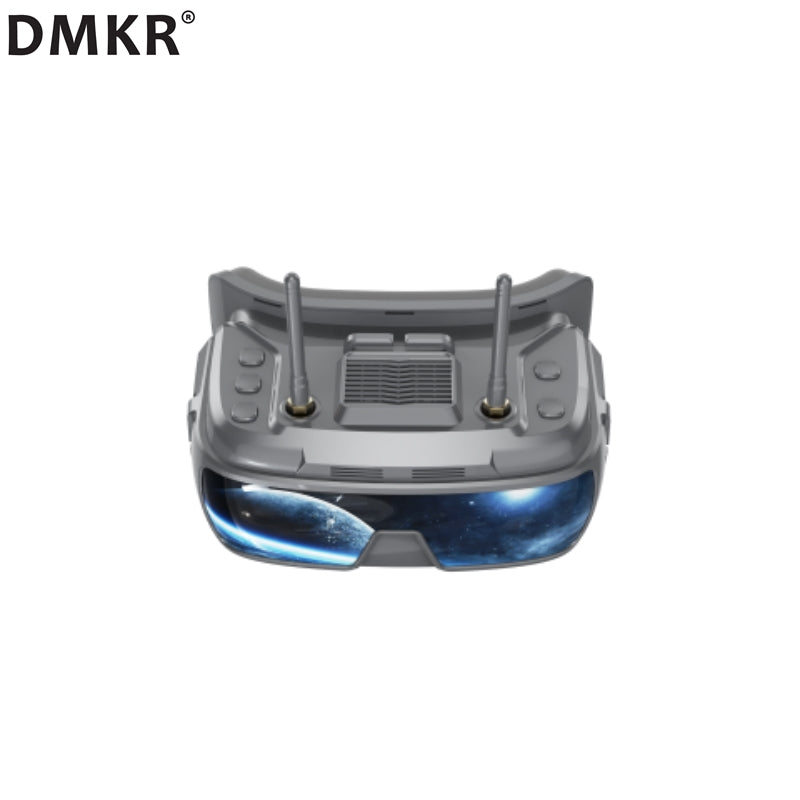

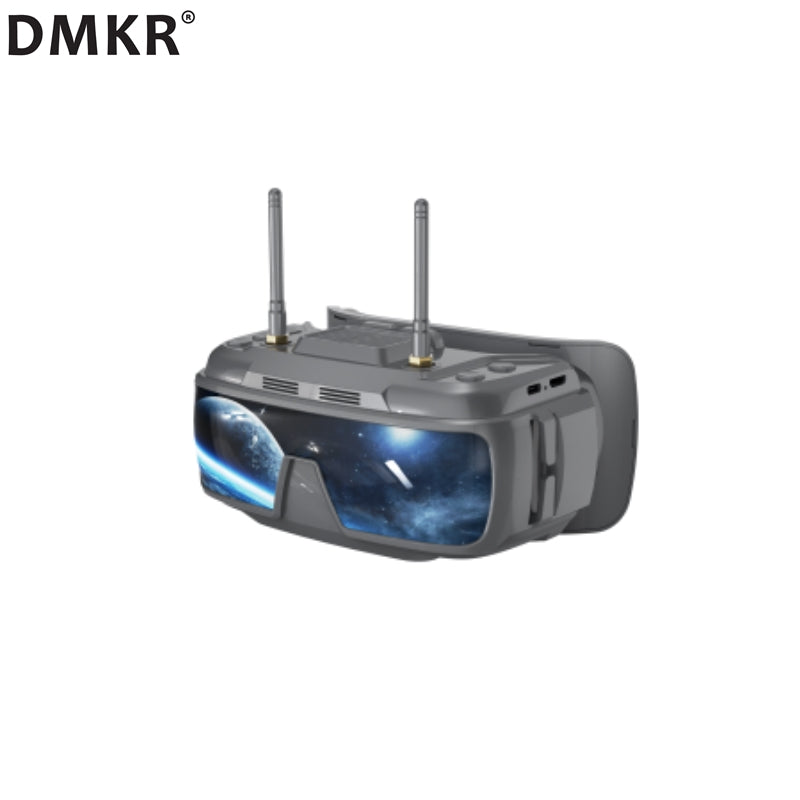

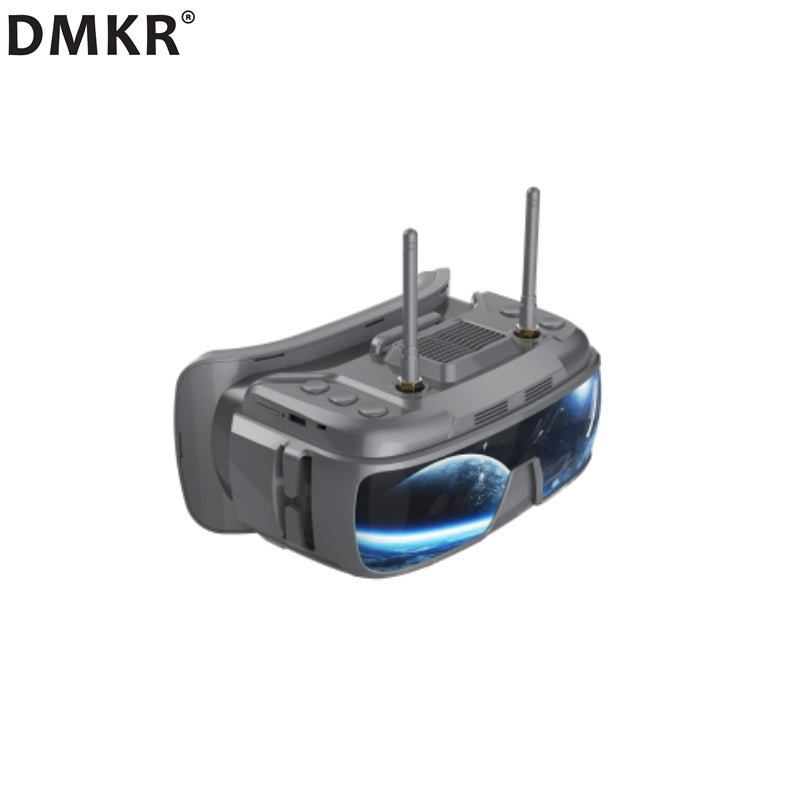

DMKR | 3.5 Inches 5.8G FPV Video Goggles Integrated 40-Channel High-Sensitivity Receiver Module VR200

Product Features:

· New refractive optical design, compact size, and lightweight;

· Adjustable focal length, compatible with 0-700° myopia correction;

· Low power consumption, operating current of 1100mA;

· High-sensitivity dual-filter 5.8G receiver module with strong anti-interference, dual diversity reception for more stable signals;

· 40-channel universal module with automatic frequency search function;

· Equipped with a 3.5-inch 1024*600 resolution high-brightness IPS screen;

· Built-in 3.7V/2000mAh high-capacity polymer lithium battery;

· Universal TYPE-C charging port, supports wide voltage charging from 5-23V;

· Zero latency real-time video feedback;

· Supports 8-language menu;

· Supports external HDMI signal input;

· Supports HDMI signal video input recording via DVR.

Specifications :



Button Definitions:

Button/Interface Function Descriptions:

1. Recording Indicator: Displays different DVR operating states

2. TF Card: TF card slot (supports up to 32G high-speed memory card)

3. Adjustment Gear A: Rotating the gear moves the internal lens to adjust the focal distance

4. Power Button: Long press (3 seconds) to power on/off; short press to enter the menu, and each subsequent press switches to the next menu item

5. Search Button: Short press to automatically search for signals (locks onto the strongest frequency point), long press for 3 seconds to enter HDMI input mode

6. Cooling Vent

7. External Module: (Supports common external tuning modules available on the market)

8. Cooling Vent

9. Band+ Button: Short press to switch frequency bands (cycles through A-B-E-F-R bands), in menu mode it functions as "−"

10. REC Button: Short press to start/stop recording

11. CH+ Button: Short press to switch frequency points (cycles through 1-2-3-4-5-6-7-8 points), in menu mode it functions as "＋"

12. Adjustment Gear B: Rotating the gear moves the internal lens to adjust the focal distance

13. Charging Port: Uses TYPE-C interface to support DC5-23V charging

14. Charging Indicator: Displays red while charging, turns green when fully charged

15. HDMI Interface: Uses a mini HDMI port to support external video input





Menu Instructions:

In power-on mode, short press the Power button to enter the menu.

In menu mode:

Button 4: Scroll through options

Button 5: Automatically search channels

Button 9: Parameter adjustment ＋

Button 10: No function

Button 11: Parameter adjustment －



Playback Instructions:

In menu mode, select the DVR option to enter DVR playback mode.

In DVR mode:

Button 4: Return/exit playback mode

Button 5: Delete the current file

Button 9: Select the next video/fast forward during video playback

Button 10: Play/Pause

Button 11: Select the previous video/rewind during video playback



Dimension Diagram:

Excludes antenna and head strap.





Safety Instructions:

1. Please read the user manual thoroughly before operation to familiarize yourself with the product features!

2. Age Recommendation: 14 years and older. Close use of any display by children under 14 may cause eye development issues. This is not a toy for children!

3. Avoid using the product in humid environments!

4. Use a standard USB charger; the charging voltage must be 5-23V only.

5. HDMI input and RF input cannot operate simultaneously. Do not insert external video in RF receiving mode.

6. Do not use corrosive cleaners to wipe the product!
