Description:
- Brand Name: JaribeL
- Item Name: Moneagle
- Size of Display: 5 Inches
- Glass Material: IPS High luminance,all viewing angle
- Clarity of Display: 800x480px
- Luminance of Display: 1000Lux
- Receiver: Diversity Receiver
- Receiving Frequency Channel Numbers: 40
- Signal: Analog
- DVR System: Autonomous System
- DVR Function: Supporting Replay
- DVR Mode: VGA/D1/HD available
- Storage Medium: TF Card
- Storage Standard: C10,Maximum supporting 64G
- Loudspeaker: High fidelity,stereo speakers
- Material of Battery: 3.8V Polymer battery
- Battery Capacity: 4000mAh
- Continuous Working Hours: >3 hours
- Size of Product: 145x86x16mm (without antenna)
- Weight: 218g
- Charging Input Mode: USB Charging Mode
- Input Voltage: DC 5-23V, wide voltage input range,which can be powered by lipo battery 2-6S
Features:

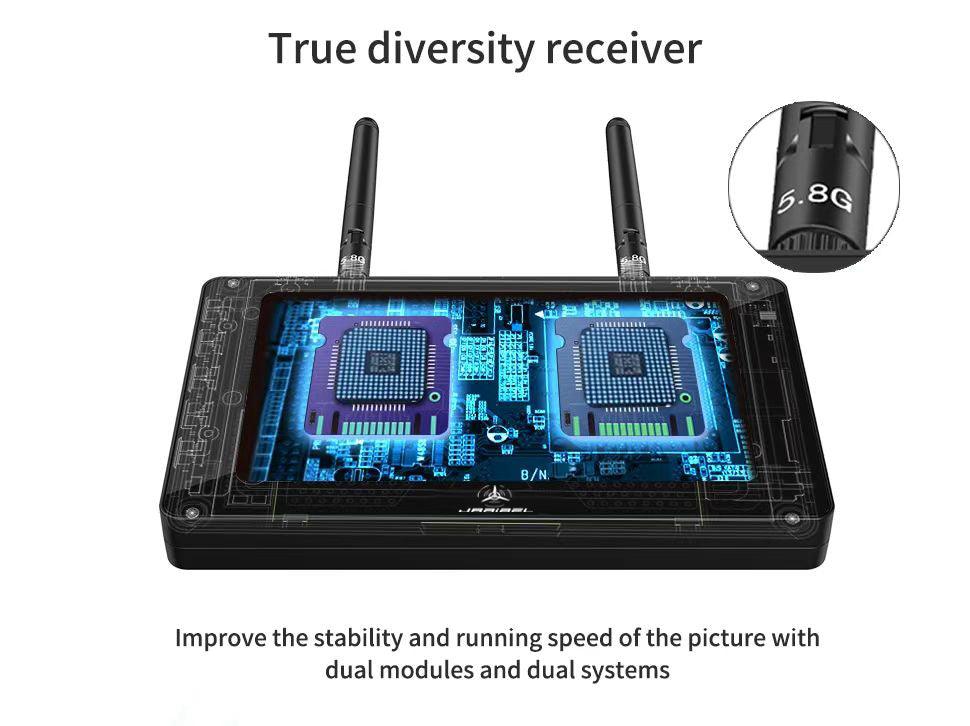

- 5.8G 40CH true diversity receiver
- Ultra-high luminance,800x480px HD screen
- One-Key-Auto search,simple operation

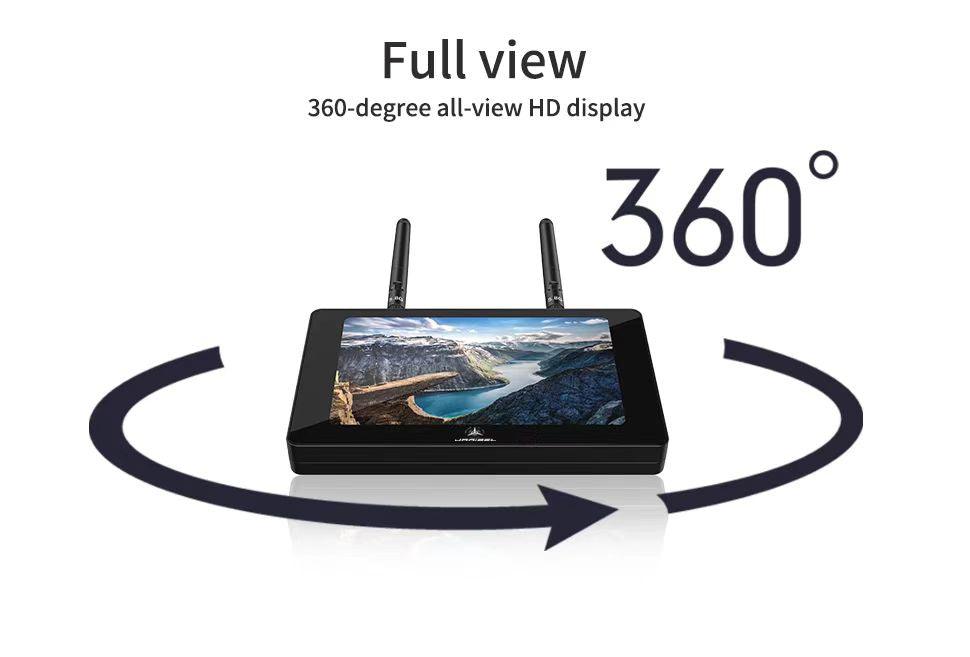

- 360 degree all-view HD display
- Three video recording modes: DVR(VGA/D1/HD)
- Built-in 4000mAh high capacity battery
- Support DC 5-23V wide voltage
- Support 2-6S lipo battery,very suitable for long time flight
- Support up to 64G TF card
- Support video replay
- Support eight languages
Upgraded:
- Double filtering upgrade, can shield more than 95% of 2.4G remote control interference and external interference.
- Sensitivity upgrade, after upgraded receiver, the stability and receiving distance can be improved by 30%.
Frequency Table (MHz):
| CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 | |
| Band A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| Band B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| Band E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| Band F | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| Band R | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
Package Included:

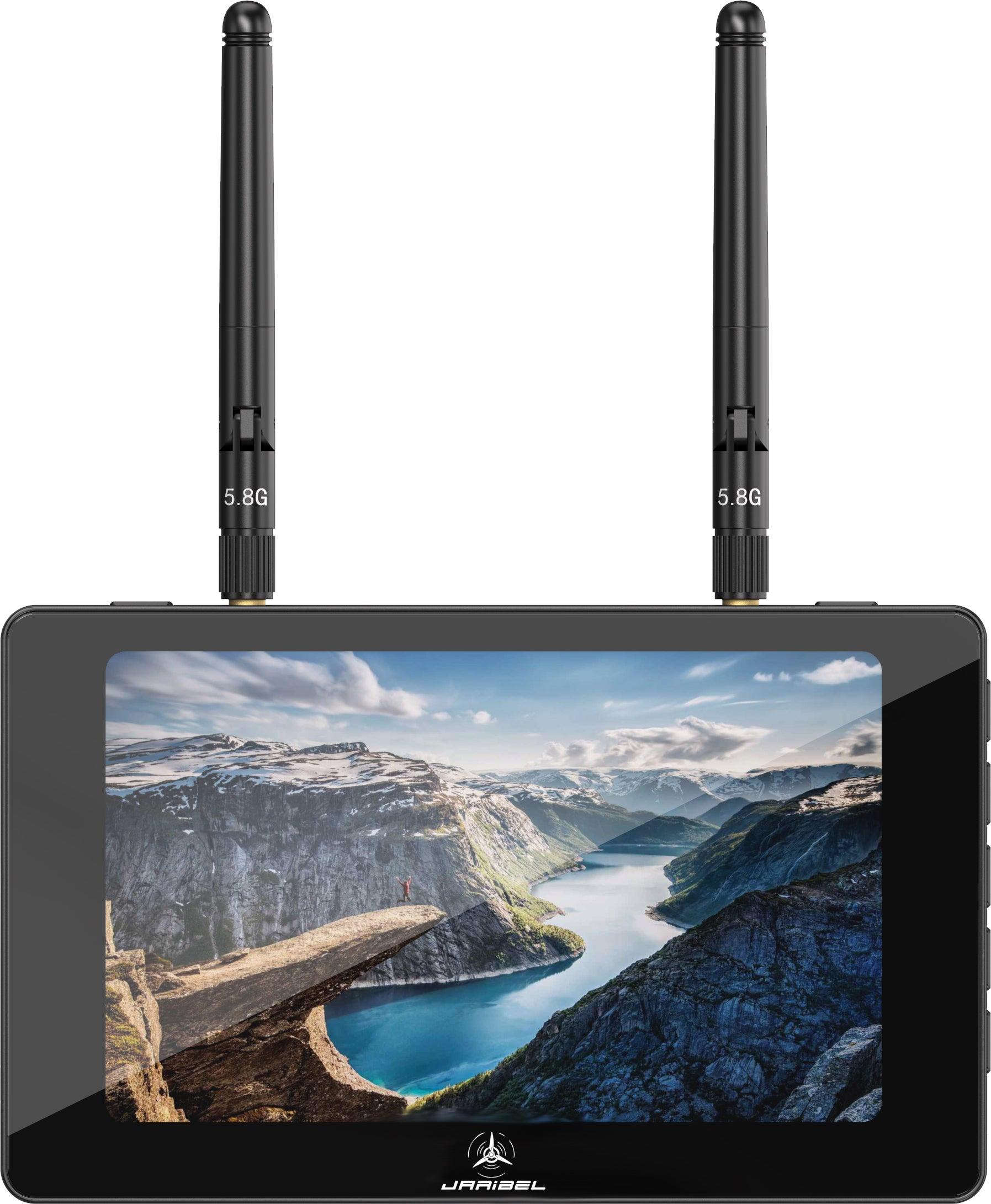

1x JaribeL Moneagle 5.8GHz 40CH 5 Inch FPV Monitor
