3000mW VTX 5.8G Long Range FPV VTX(5G3,48CH,25-3000mW, 2-8S,OSD,Betaflight,Smart Audio, MMCX)

Features

• 3000mw Super Power: Ultra-high output power, extremely cool design, stable long-distance transmission and other modern VTX features make it the most advanced and powerful 5.8GHz Video Transmitter available today.
• Four Adjustable Levels Of Transmitting Power: (PIT/25/1000/2000/3000/mW) Support Smart Audio change power、band and channel.
• Side LED Indicators And Button: More intuitive LED status reading and button adjustment.
• Ultimate Heat Dissipation Design: Full metal casing and independent cooling fan ensure stable and smooth transmission at 3000mv power.
• Long Range FPV VTX: Super high output power and stable transmission enable it to create a new long range record.
• Safe Temperature Protection: When the VTX temperature is higher than 100℃, it will automatically adjust the power down one level until it is adjusted to 25mw. When VTX detects that the temperature is less than 95°C, VTX power will return to the set power.
• Pit Mode: After entering the pit mode, the VTX power will be reduced to a minimum. The video feed is only visible to yourself at close range, so don't worry about disturbing others.

Specifications

• Item Name: VTX 5G3-3000
• Input Voltage: 7-36V DC;2-8S
• Output Voltage: 5V 1A
• 12V Input Current: 145mA@Pitmode, 280mA@25mW, 560mA@1000mW, 720mA@2000mW, 850mA@3000mW
• Channels: 48CH (A.B.E.F.R.L;5362MHz-5945MHz)
• Power: PIT/25/1000/2000/3000 mW
• Antenna connector: MMCX
• Smart Audio: IRC-tramp
• Shell Material: Aluminum

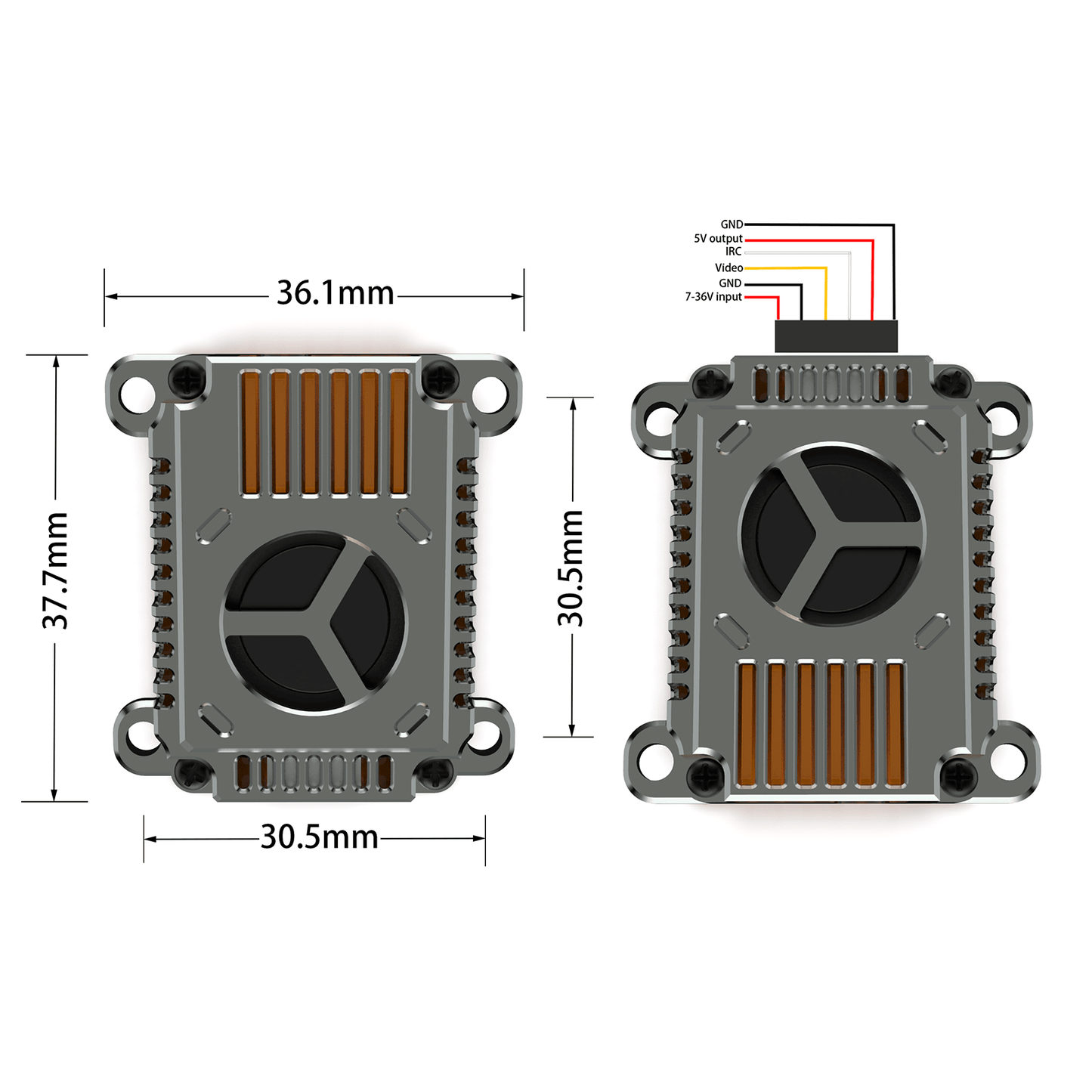

• Dimensions: 37.7*36.1*11 mm; 30.5*30.5mm(hole)
• Weight: 16g

Frequency Table:

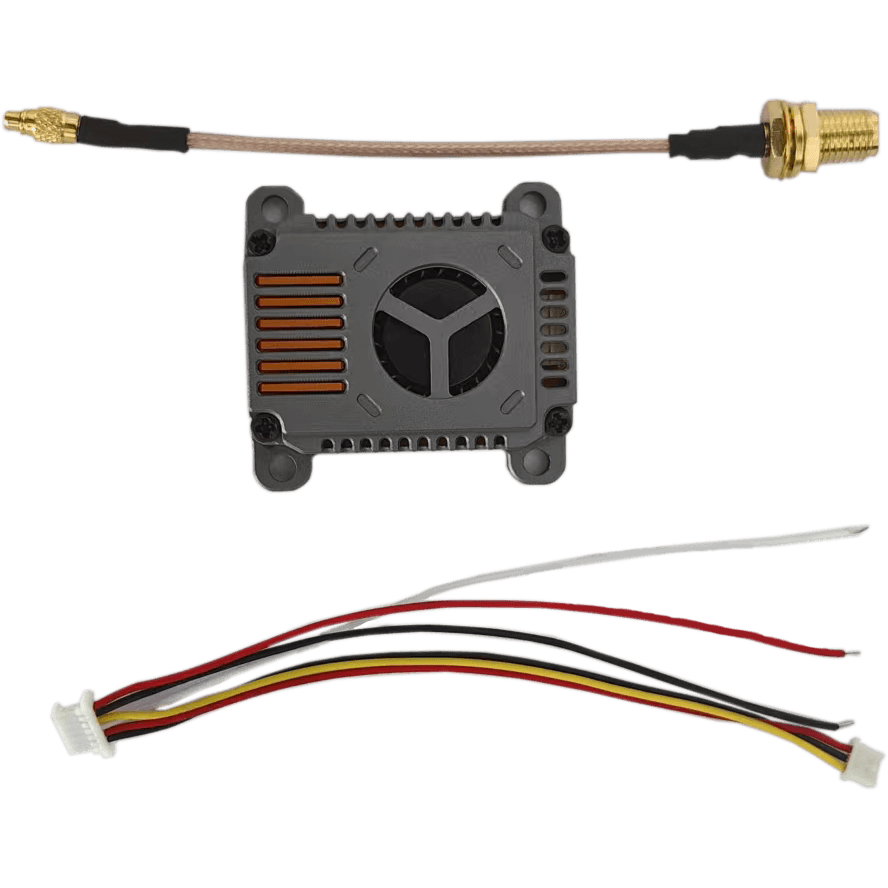

Package Included:

• 1 X 5.8GHz VTX
• 1 X MMCX to SMA Cable
• 1 X 6 Pin 1.0 Harness
• 1 X User Manual
