Feature
- 2000mw Super Power: Max 2000mw ultra-high RF power, extremely cool design, 9CH 1060MHz-380MHz output frequency.
- Four Adjustable Levels Of Transmitting Power：(PIT/25/2000/mW) Support Smart Audio change power、band and channel.
- Side LED Indicators And Button ：More intuitive LED status reading and button adjustment.
- Ultimate Heat Dissipation Design:Full metal casing and independent cooling fan ensure stable and smooth transmission at 2000mv power.
- Long Range FPV VTX：Super high output power and stable transmission enable it to create a new long range record.
- Pit Mode: After entering the pit mode, the VTX power will be reduced to a minimum. The video feed is only visible to yourself at close range, so don't worry about disturbing others.
Specifications
- Item Name: VTX 1G2-2000
- Input Voltage: 7-36V DC;2-8S
- Output Voltage: 5V 1A
- 12V Input Current: 235mA@Pitmode, 360mA@25mW, 880mA@2000mW,
- Channels: 9CH (1060MHz-1380MHz)
- Power: PIT/25/2000/mW
- Antenna connector: MMCX
- Smart Audio: IRC-tramp
- Shell Material: Aluminum

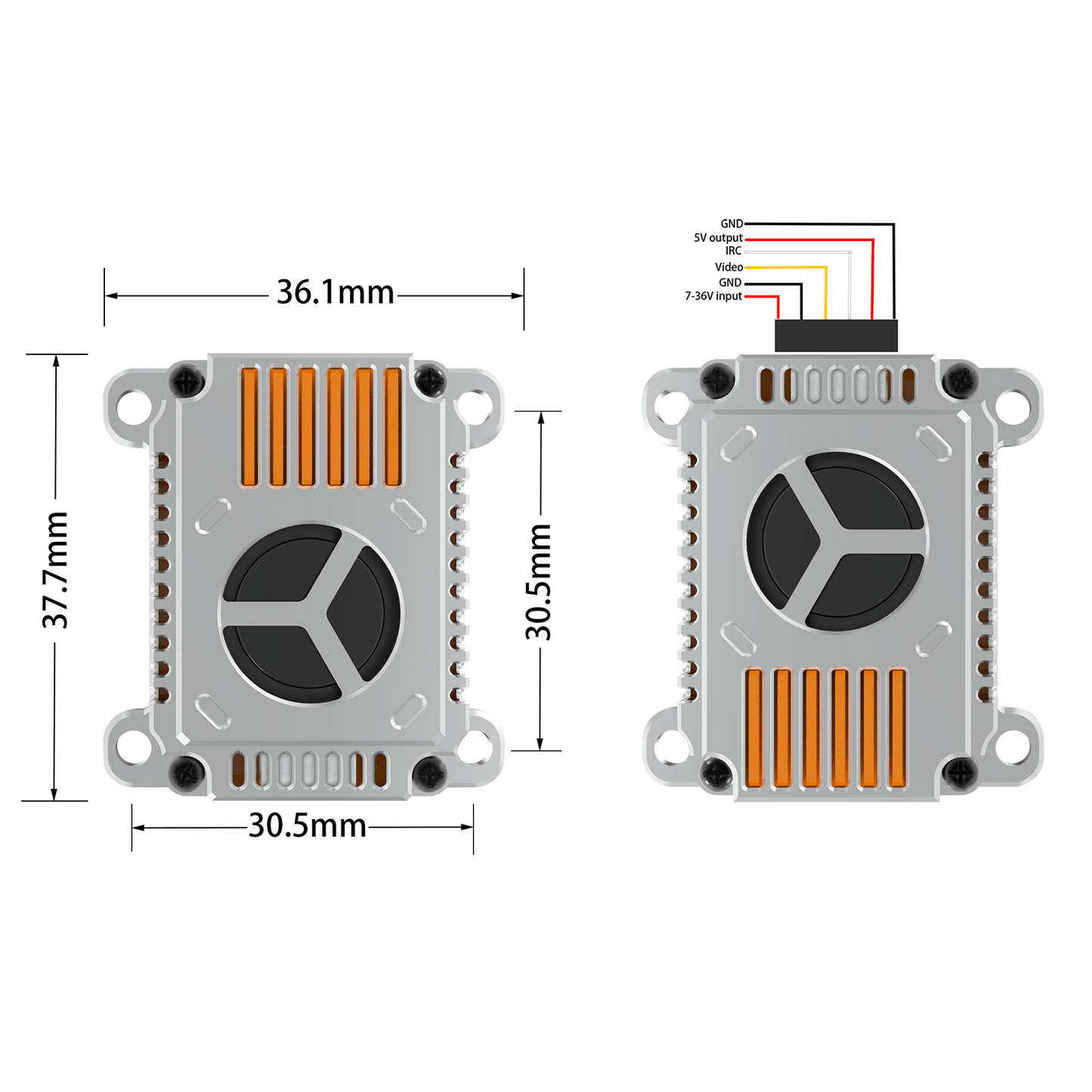

- Dimensions: 37.7*36.1*11 mm; 30.5*30.5mm(hole)
- Weight: 16g
Frequency Table:
| Channel | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| MHz | 1080 | 1120 | 1160 | 1200 | 1240 | 1280 | 1320 | 1360 | 1258 |

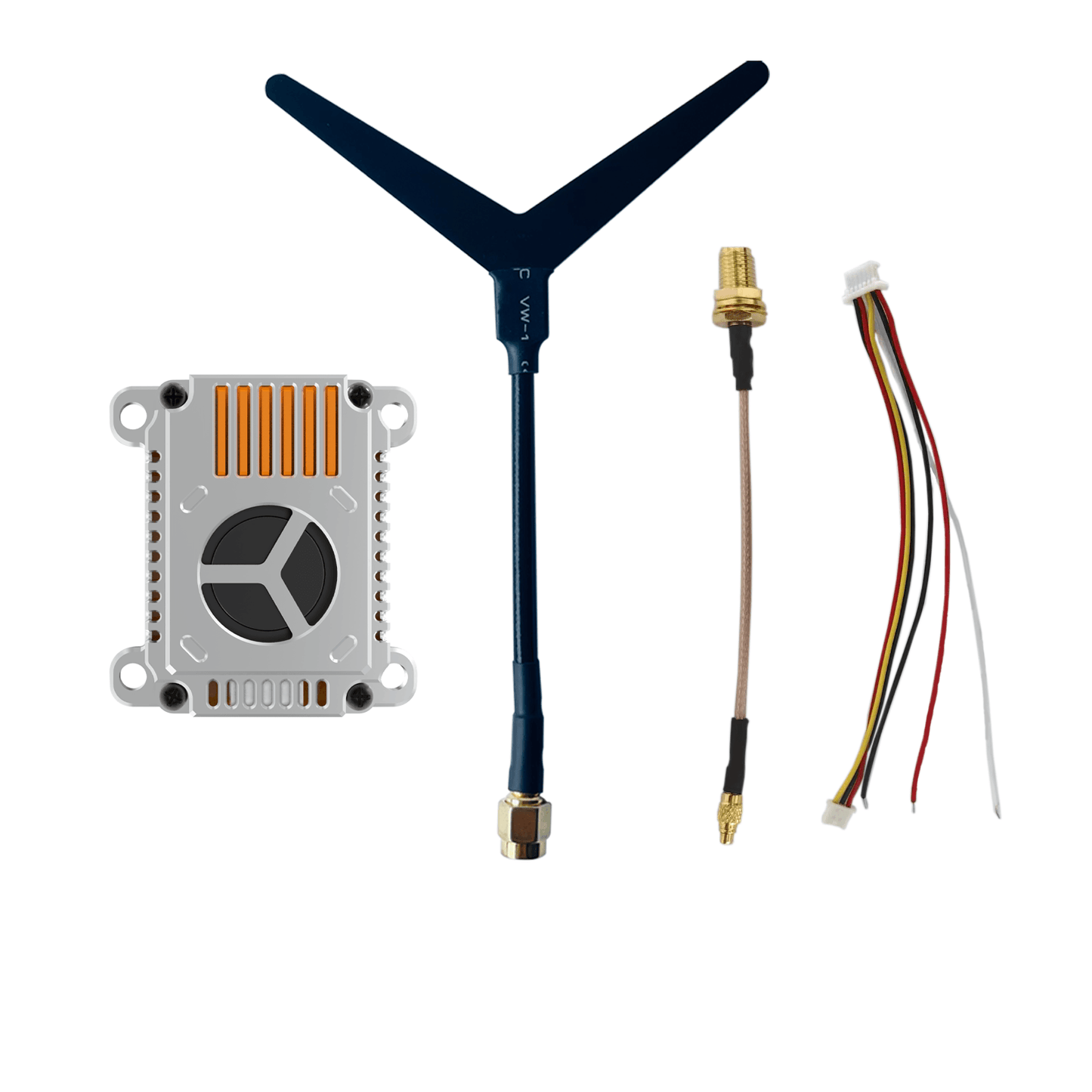

Package Included:
- 1 X 1.2GHz VTX
- 1x MMCX to SMA Cable
- 1x 6 Pin 1.0 Harness
- 1x 1.2G Y-type special antenna
- 1 X User Manual
