Features
- 1600mW Super power ,Suitable for Long Range flight with good stability.
- Four Adjustable Levels Of Transmitting Power: (PIT/25/400/800/1600mW) Support IRC Tramp change power、band and channel.

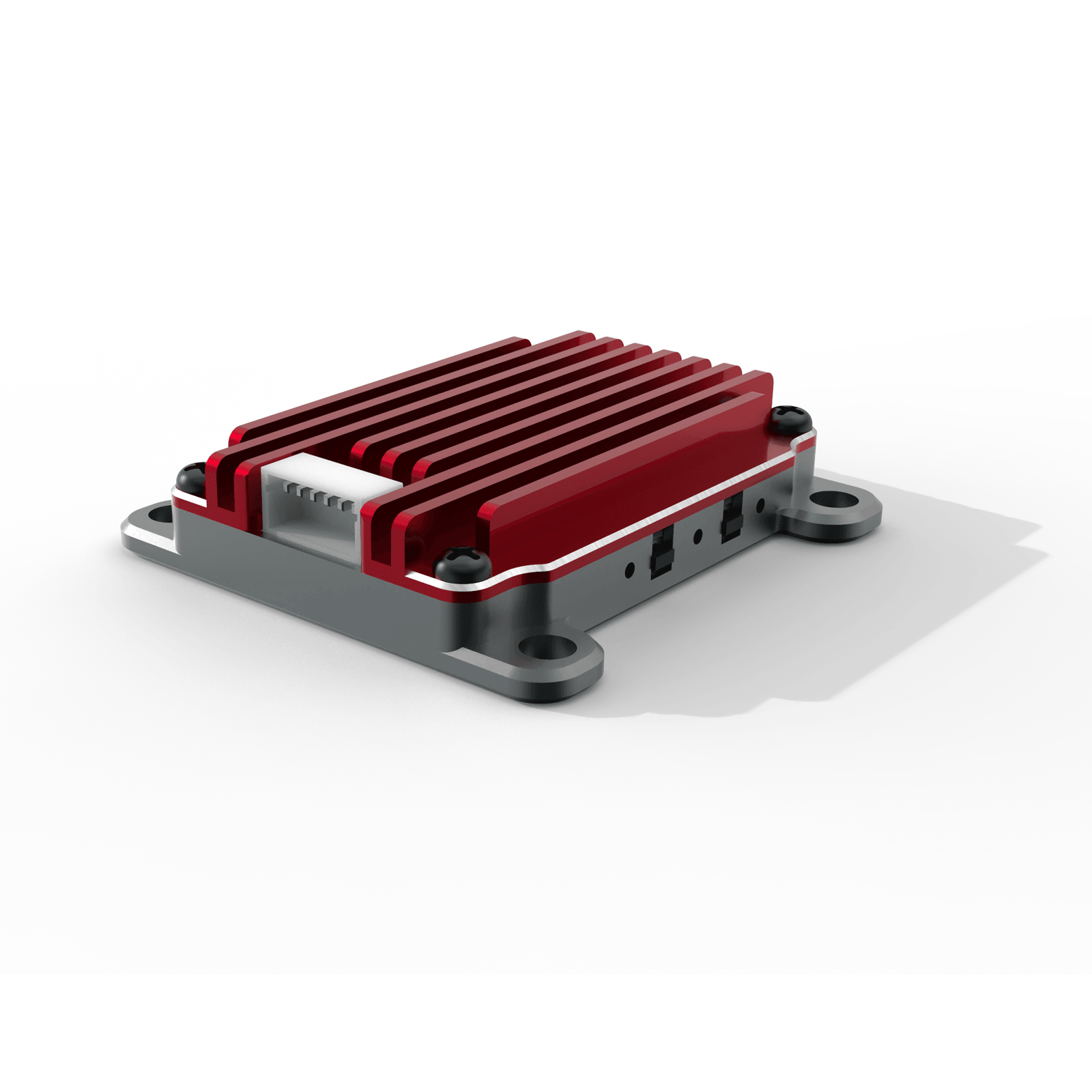

- Side LED Indicators And Button: More intuitive LED status reading and button adjustment.
- 7-36V DC Input：Wide voltage input of 7-36V DC, supports direct input of 2-8S batteries
- Frequency Range:48CH 5362MHz-5945MHz adjustable.
- VTX built in microphone,Real-time transmission of Drone’s sounds.
- Pit Mode: After entering the pit mode, the VTX power will be reduced to a minimum. The video feed is only visible to yourself at close range, so don't worry about disturbing others.
Specifications
- Item Name: VTX 5G3-1600N
- Input Voltage: 7-36V DC;2-8S
- Output Voltage: 5V 1A
- 12V Input Current: 180mA@Pitmode, 200mA@25mW, 330mA@400mW, 410mA@800mW, 620mA@1600mW
- Channels: 48CH (A.B.E.F.R.L;5362MHz-5945MHz)
- Power: PIT/25/400/800/1600 mW

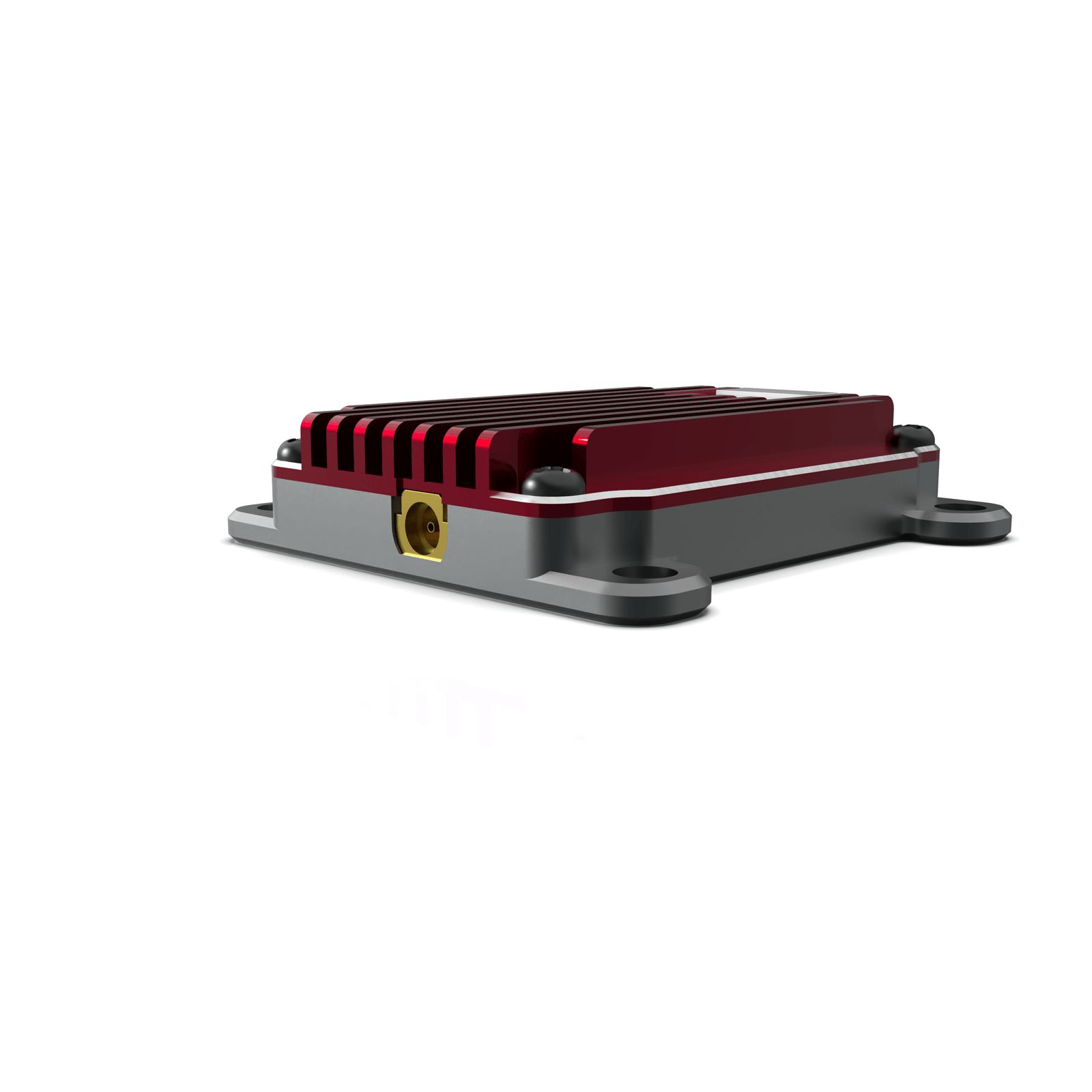

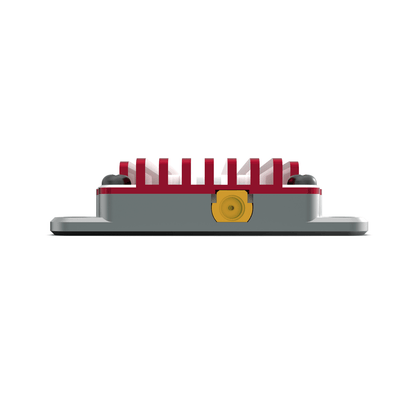

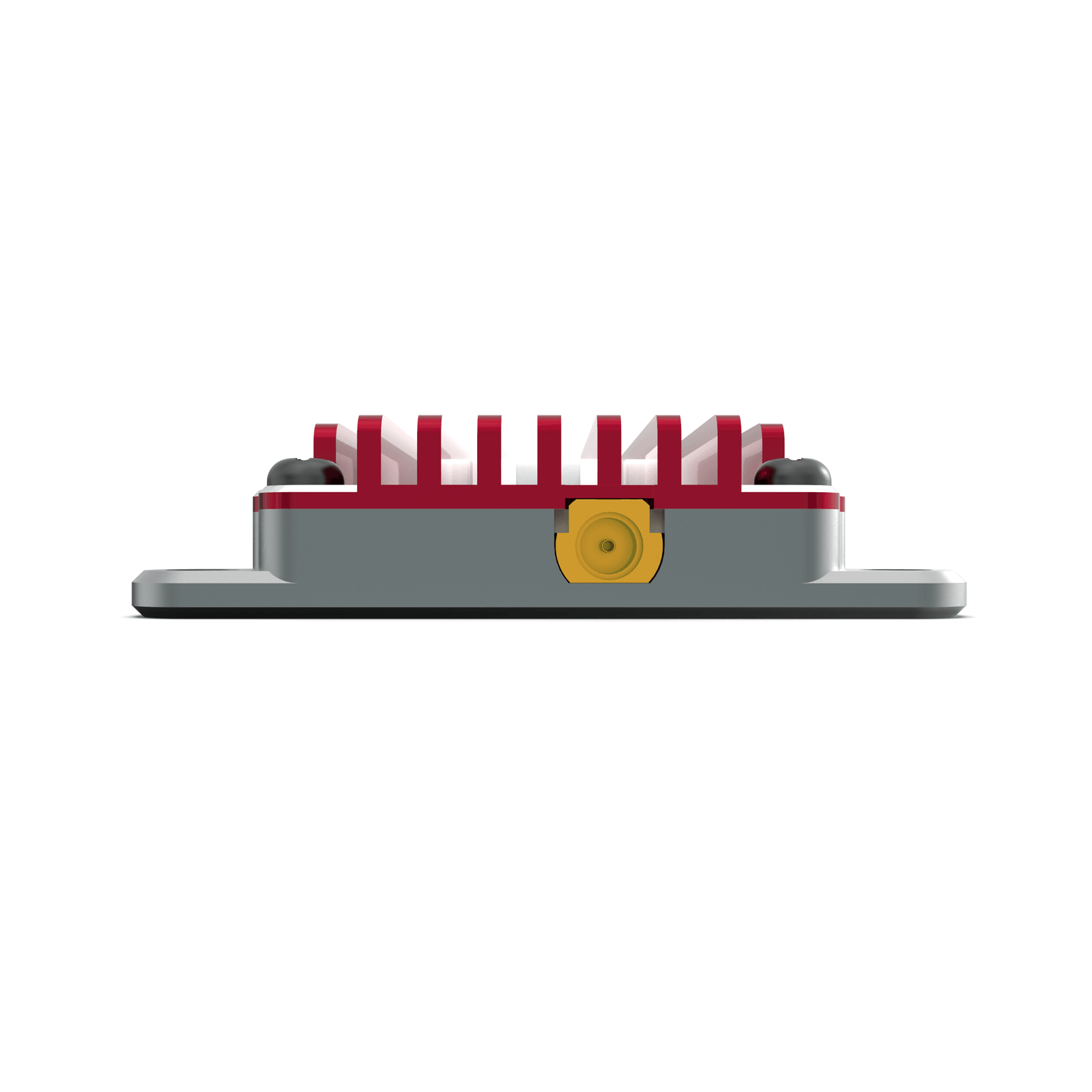

- Antenna connector: MMCX
- Smart Audio: IRC-tramp
- Shell Material: Aluminum

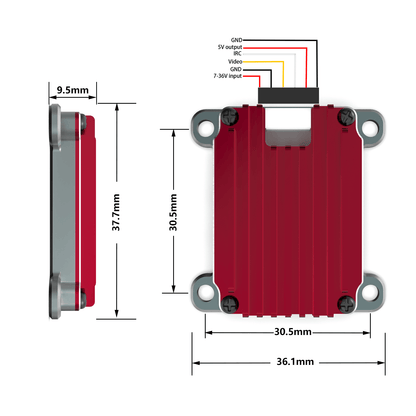

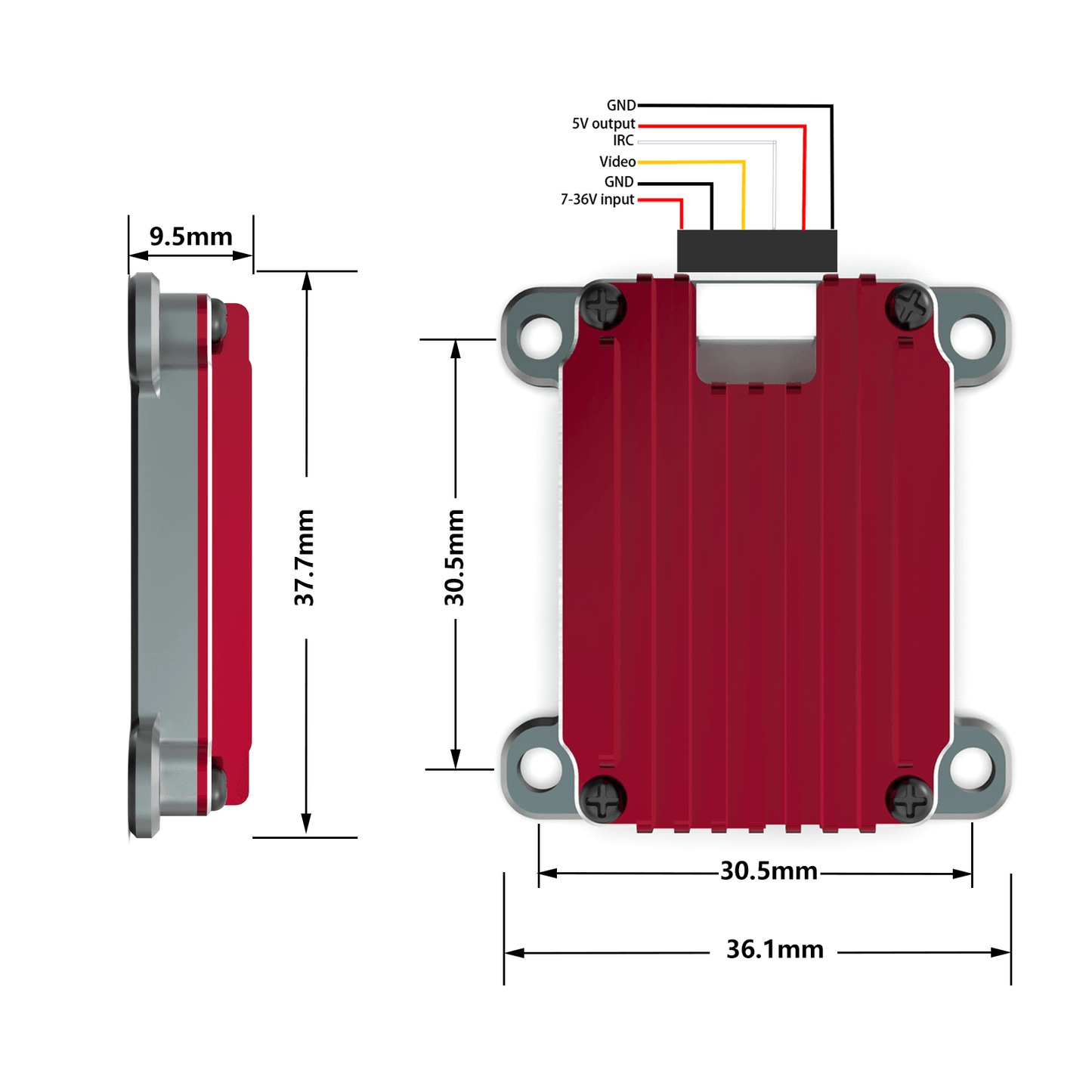

- Dimensions: 37.7*36.1*9.5 mm; 30.5*30.5mm(hole)
- Weight: 15.8g
Frequency Table:
| Band&Channel | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
| Band A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| Band B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| Band E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| Band F | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| Band R | 5658 |
5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
| Band L | 5362 | 5399 | 5436 | 5473 | 5510 | 5547 | 5584 | 5621 |

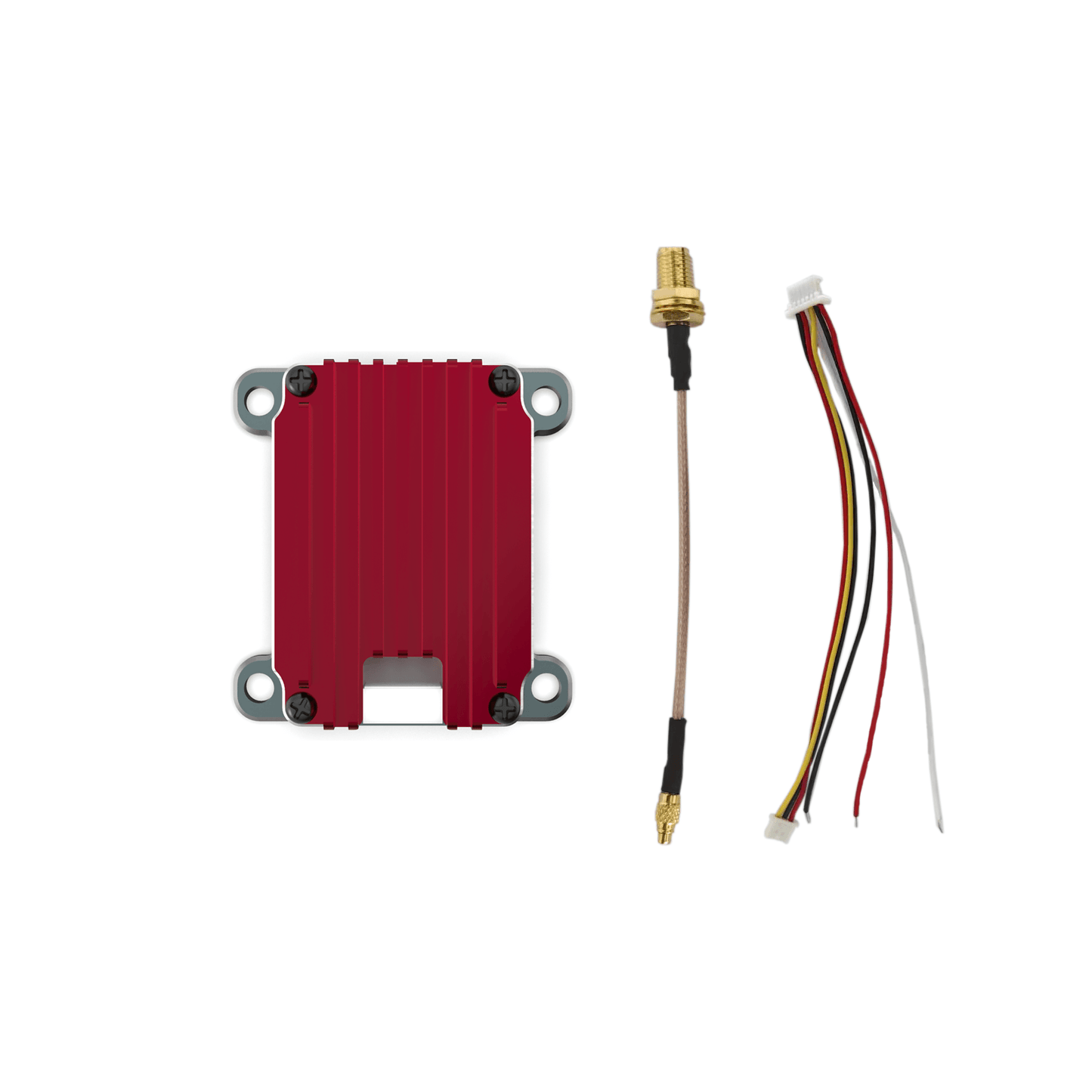

Package Included:
- 1 X 5.8GHz VTX
- 1 X MMCX to SMA Cable
- 1 X 6 Pin 1.0 Harness
