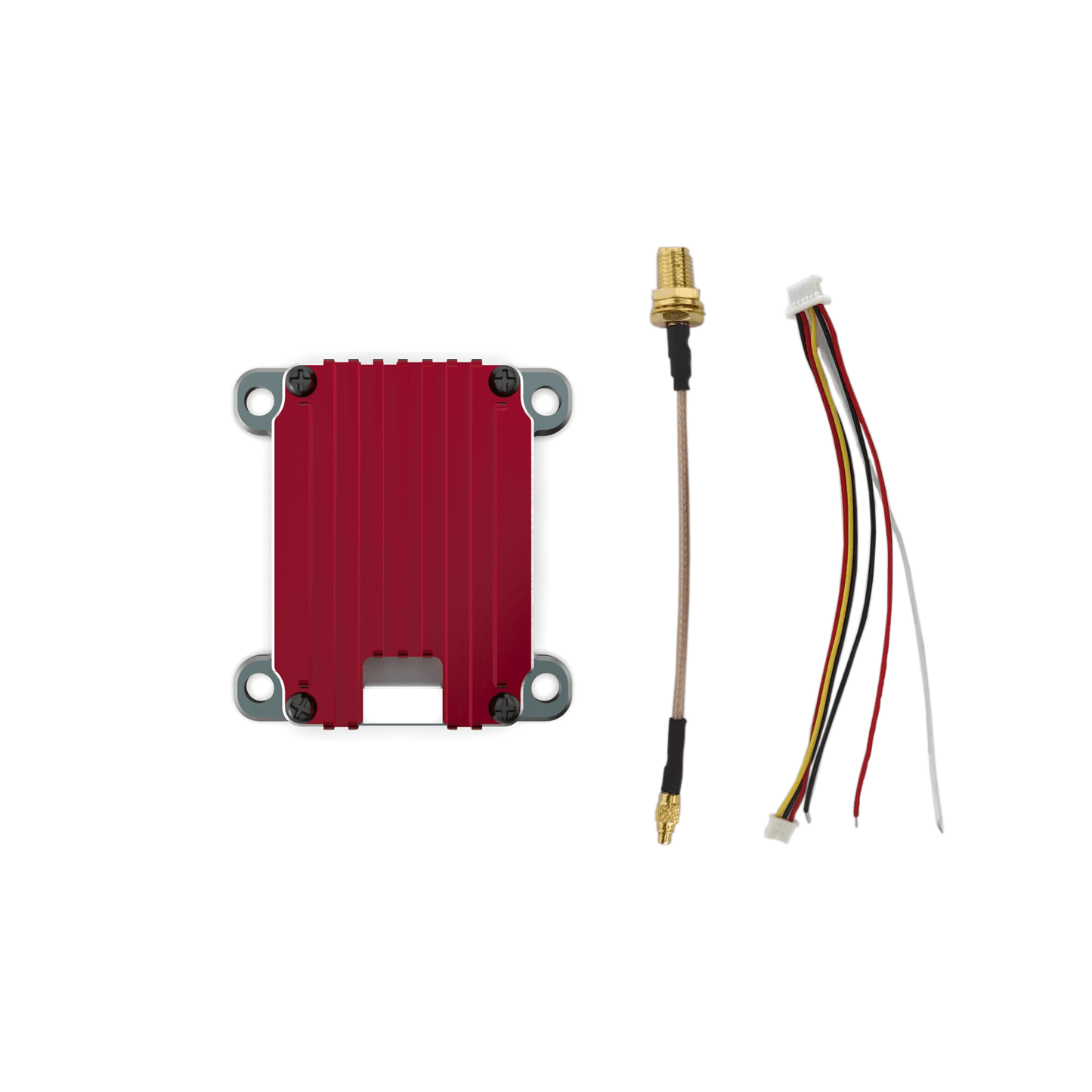

1600mW VTX 4.9G Long Range FPV VTX(4.9G,8CH,25-1600mW, 2-8S,OSD,Betaflight,IRC Tramp)

Features

• 1600mW Super power ,Suitable for Long Range flight with good stability.
• Four Adjustable Levels Of Transmitting Power: (PIT/25/400/800/1600mW) Support IRC Tramp change power、band and channel.
• Side LED Indicators And Button: More intuitive LED status reading and button adjustment.
• 7-36V DC Input：Wide voltage input of 7-36V DC, supports direct input of 2-8S batteries
• Frequency Range:8CH 4990MHz-5200MHz adjustable.
• VTX built in microphone,Real-time transmission of Drone’s sounds.
• Pit Mode: After entering the pit mode, the VTX power will be reduced to a minimum. The video feed is only visible to yourself at close range, so don't worry about disturbing others.

Specifications

• Item Name: VTX4G9-1600
• Input Voltage: 7-36V DC;2-8S
• Output Voltage: 5V 1A
• 12V Input Current: 180mA@Pitmode, 200mA@25mW, 330mA@400mW, 410mA@800mW, 620mA@1600mW
• Channels: 8CH (X;4990MHz-5200MHz)
• Power: PIT/25/400/800/1600 mW
• Antenna connector: MMCX
• Smart Audio: IRC-tramp
• Shell Material: Aluminum
• Dimensions: 37.7*36.1*9.5 mm; 30.5*30.5mm(hole)
• Weight: 15.8g

Frequency Table:

Package Included:

• 1 X 4.9 GHz VTX
• 1 X MMCX to SMA Cable
• 1 X 6 Pin 1.0 Harness
