Feature
- Adjustable Levels Of Transmitting Power: PIT/25mW/200mW/1600/mW, switch by long pressing the button.
- Frequency Range: 9CH 1060MHz-1380MHz adjustable.

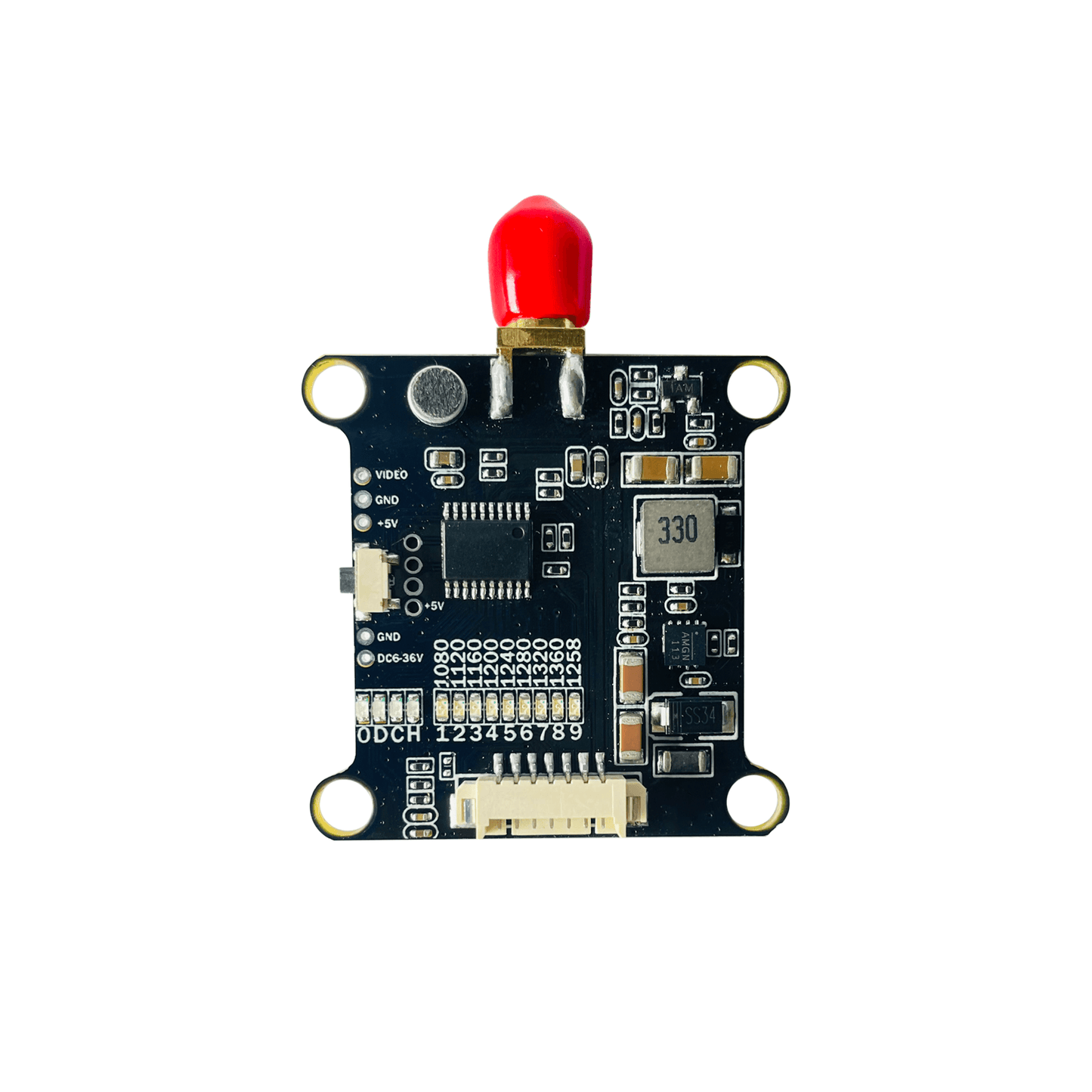

- LED indicators and buttons: More intuitive LED status reading and button adjustment. Green LED indicates the current RF power, red LED indicates the current frequency; long press the button (more than 3s) to adjust the RF power, short press the button to adjust the frequency.
- Onboard MIC: Onboard high-sensitivity MIC supports audio output.
- 7-36V DC Input：Wide voltage input of 7-36V DC, supports direct input of 2-8S batteries.
- Pit Mode: After entering the pit mode, the VTX power will be reduced to a minimum. The video feed is only visible to yourself at close range, so don't worry about disturbing others.
Specifications
- Item Name: VTX 1G2-1600
- Input Voltage: 7-36V DC;2-8S
- Output Voltage: 5V 1A
- 12V Input Current: 80mA@Pitmode, 190mA@25mW, 230mA@200mW, 530mA@1600mW
- Channels: 9CH (1060MHz-1380MHz)
- Power: PIT/25/200/1600/mW
- Antenna connector: SMA

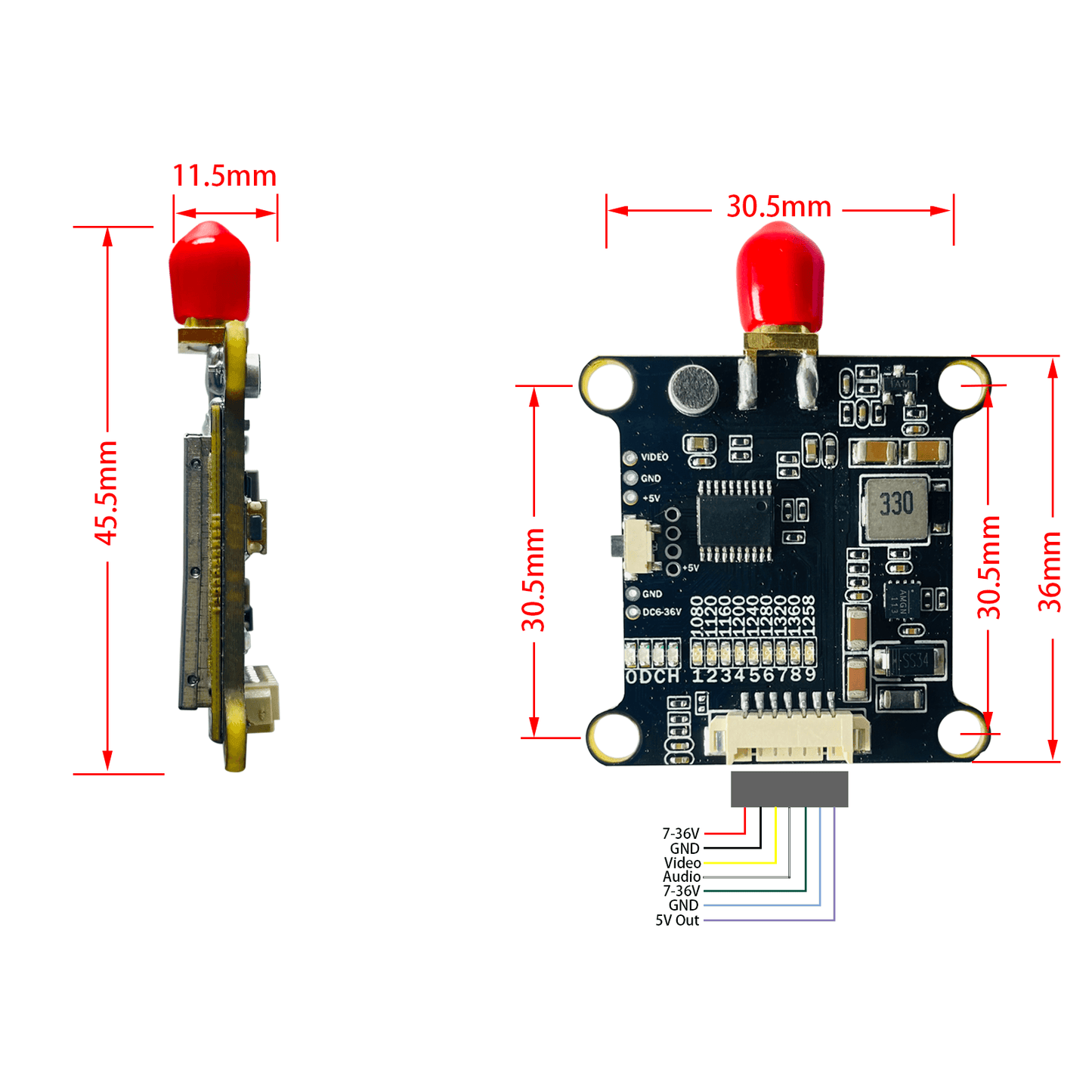

- Dimensions: 45.5*35.6*11.5 mm; 30.5*30.5mm(hole)
- Weight: 22g
Frequency Table:
| Channel | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| MHz | 1080 | 1120 | 1160 | 1200 | 1240 | 1280 | 1320 | 1360 | 1258 |

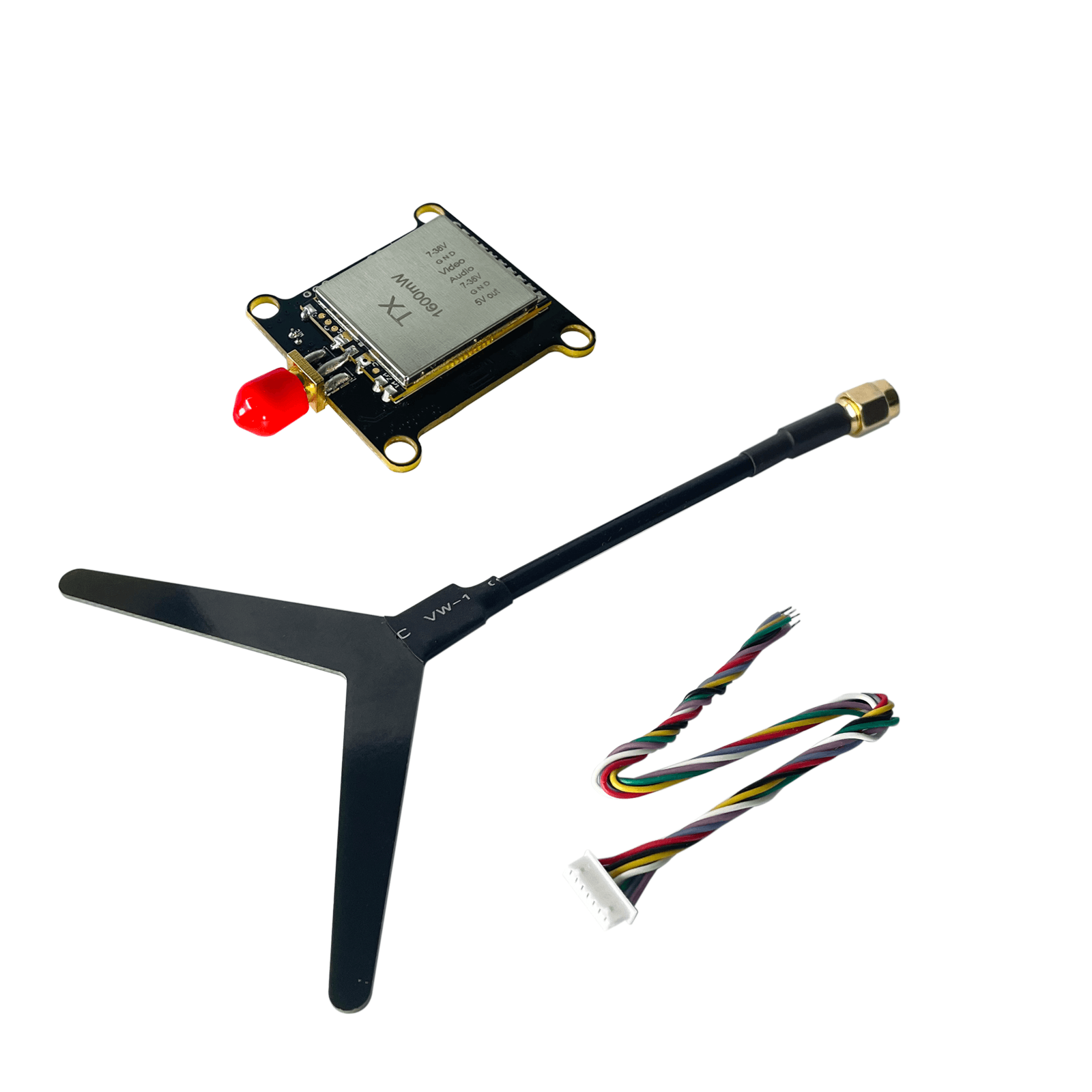

Package Included:
- 1 X 1.2GHz VTX
- 1x 7 Pin 1.25 Harness

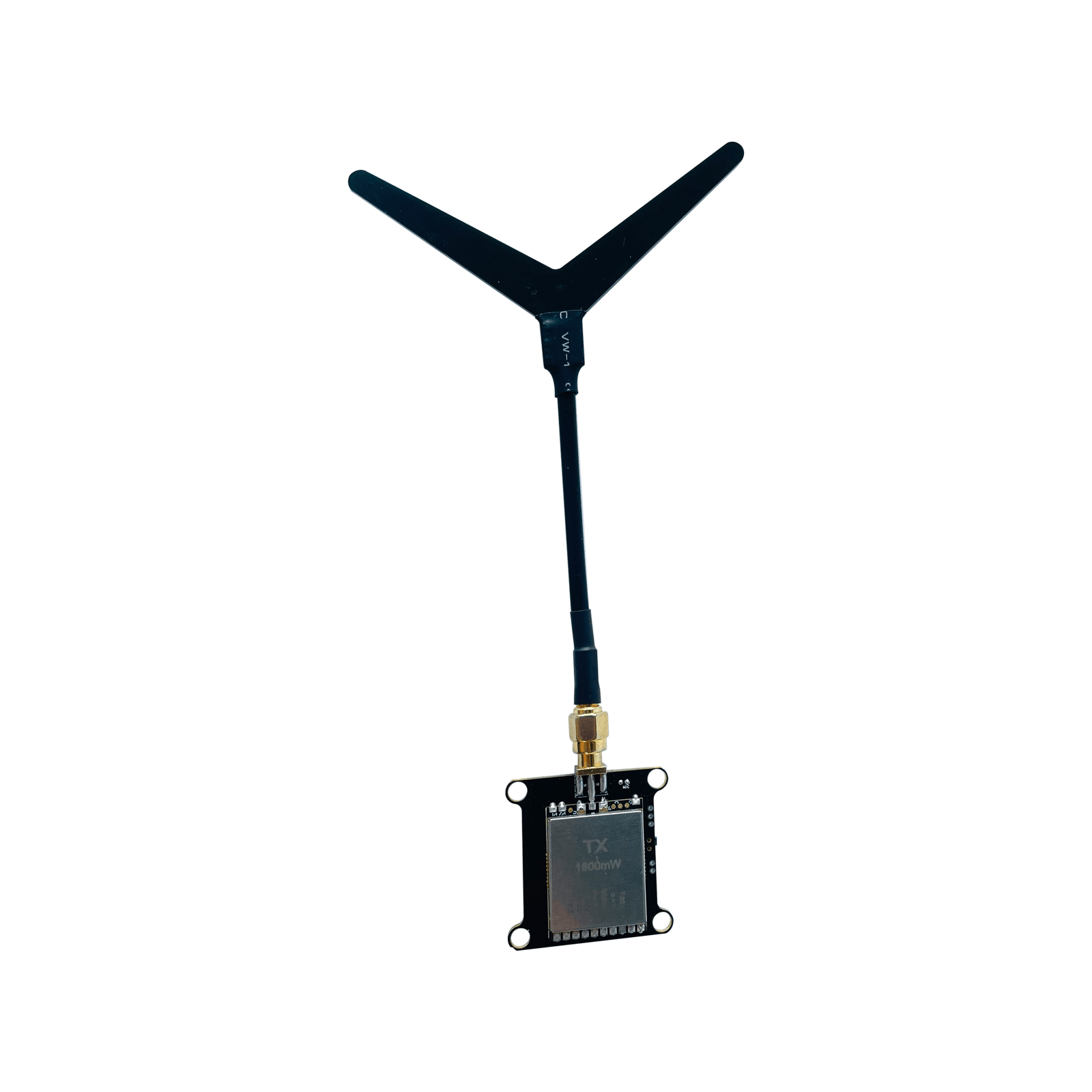

- 1x 1.2G Y-type special antenna
