Features
- 9CH Wide Frequency: 1050MHz~1380MHz Receiving frequency range,9 channels adjustable.

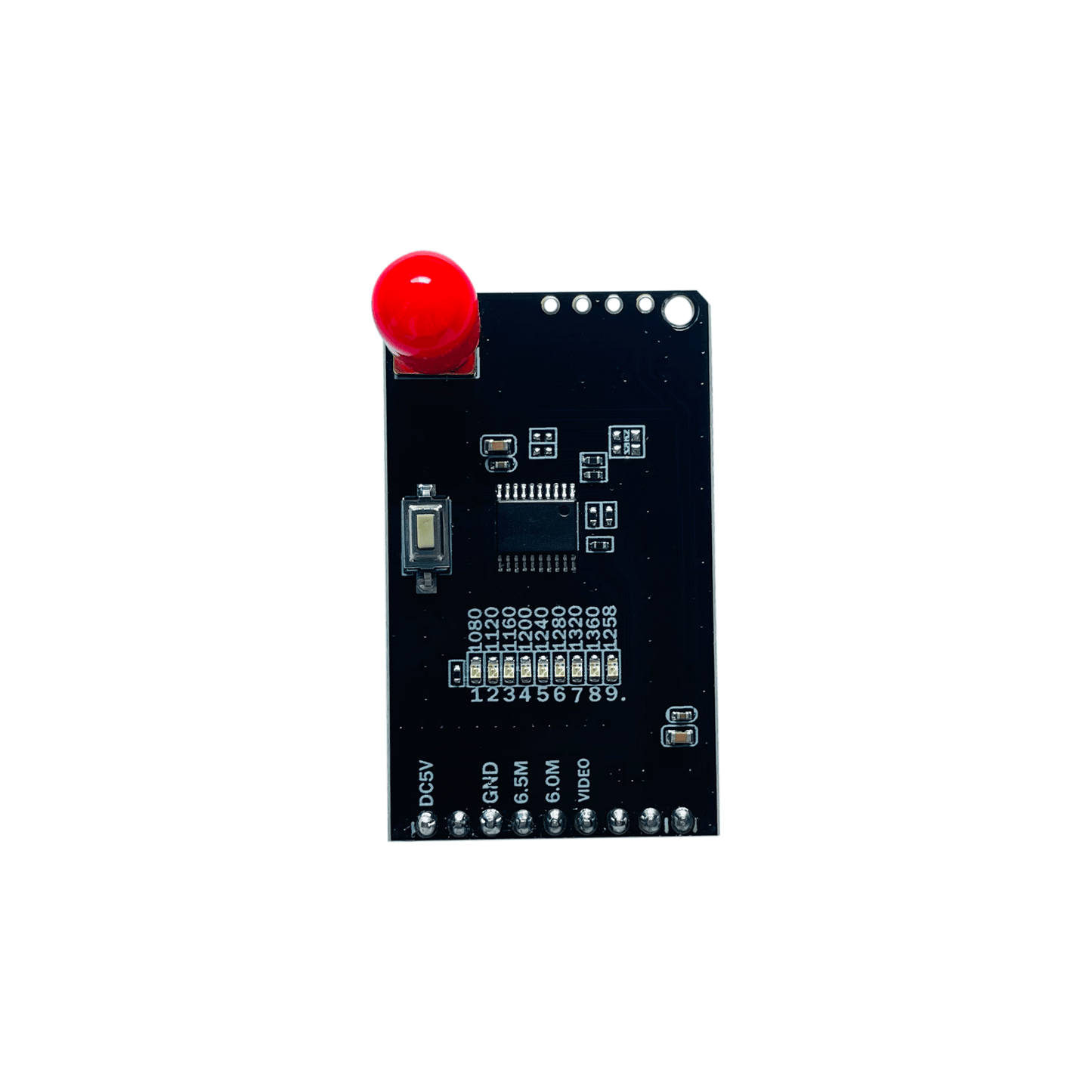

- Button control and LED indicators: Each red LED light displays a different receiving frequency. Short press the button to switch to the next channel, and the LED corresponding to the frequency will light up.
- Power off memory function：After each frequency switch, the system will automatically save the current receiving frequency. When the power is reconnected, the receiving frequency will remain the same as before the power was cut off.
- Simple and replaceable：Receiver compatible with many interchangeable receiver goggle monitors, such as Jaribel 800D Pro; Skyzone; Fat Shark and other FPV goggles.
Specifications
- Item Name: VRX 1G2SE
- Receiving frequency: 9CH (1050MHz to 1380MHz)
- Input voltage：DC 5V
- Current consumption: (280±40) mA@5V
- Button control and LED indicators
- RX Sensitivity: -95dBm
- Voltage Standing Wave Ratio: 2:1
- Demodulation System: FM/PLL
- ANT. input impedance: 50Ω, Typ.
- Video Output impedance: 75Ω, Typ.
- Audio Subcarrier Frequency: 6.0MHz (AR) 6.5 MHz (AL)
- RF Connector: SMA
- Weight: 12g ( w/o antanna)

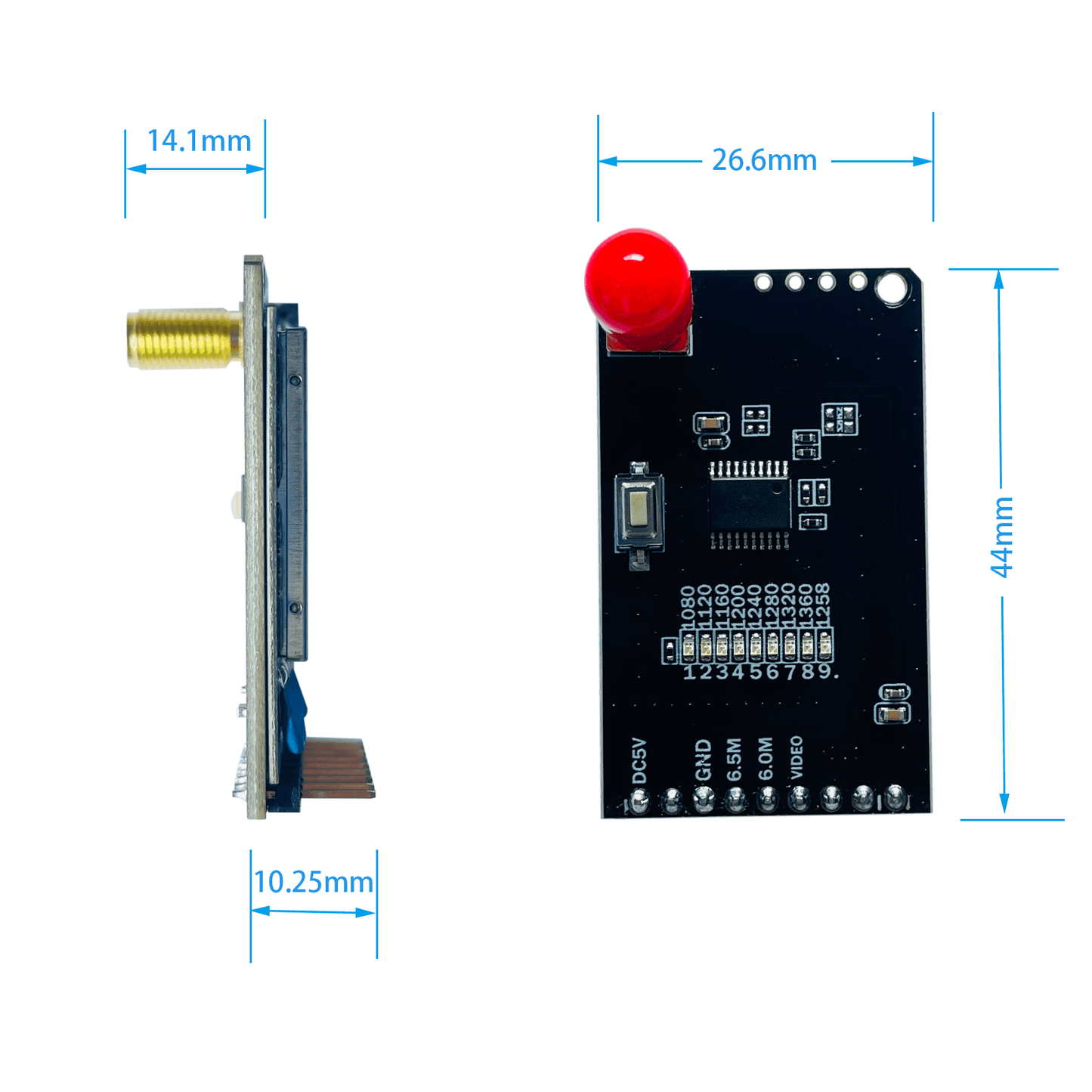

- Size: board 44mm (L)*27mm (W)*24mm (H)
Package Included

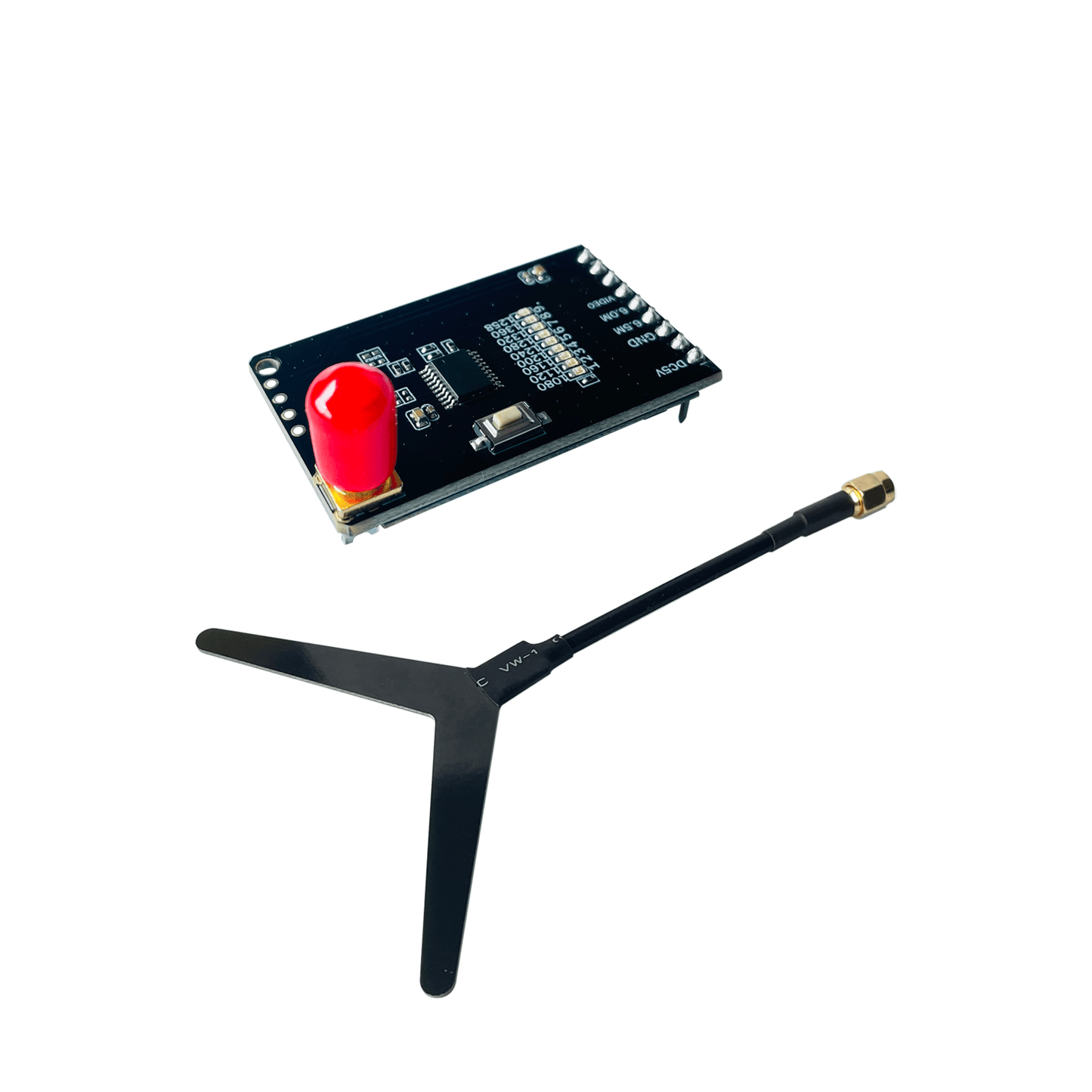

- 1 X 1.2GHz VRX

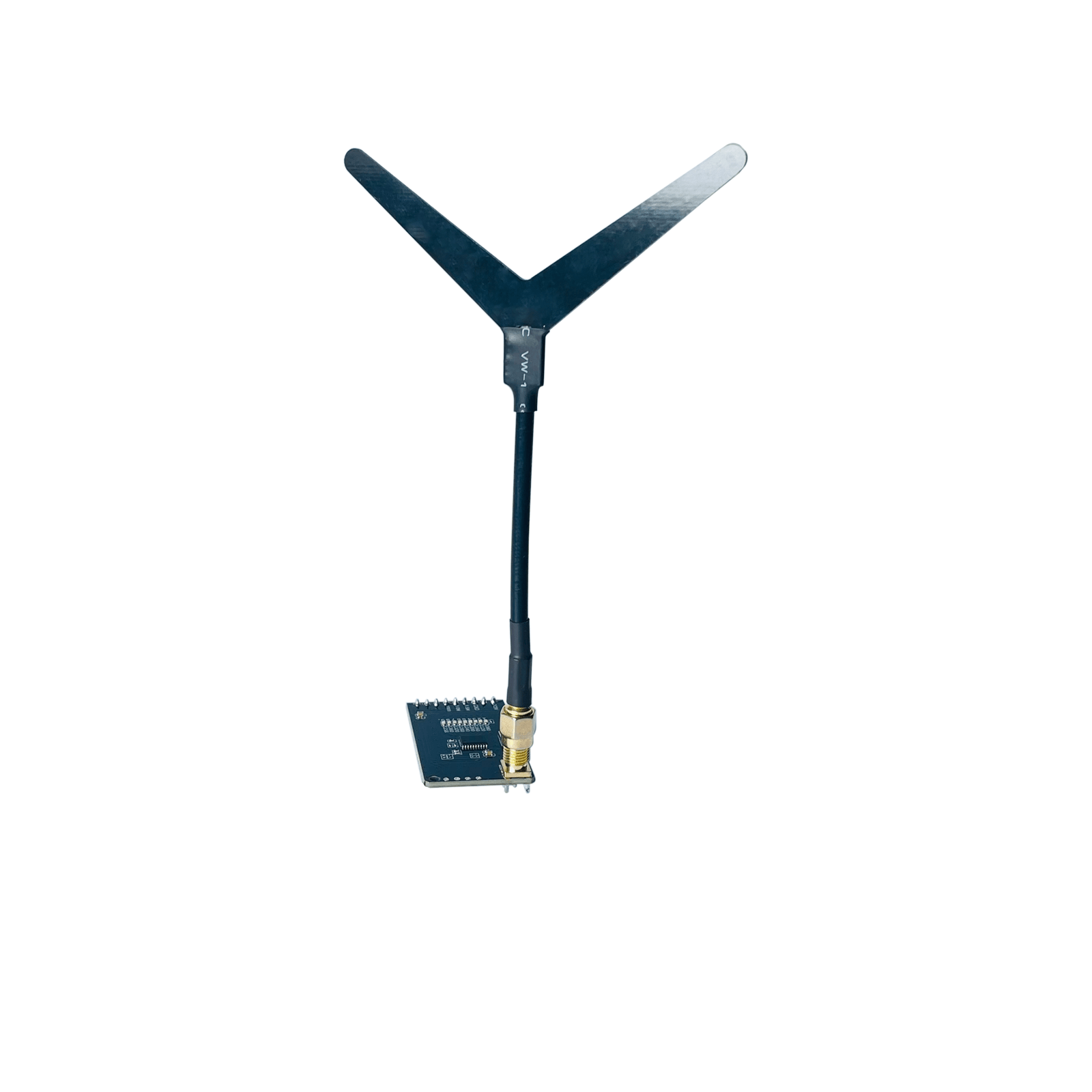

- 1 X “Y”Type antenna
