Features
- 9CH Wide Frequency: 1050MHz~1380MHz Receiving frequency range,9 channels adjustable.

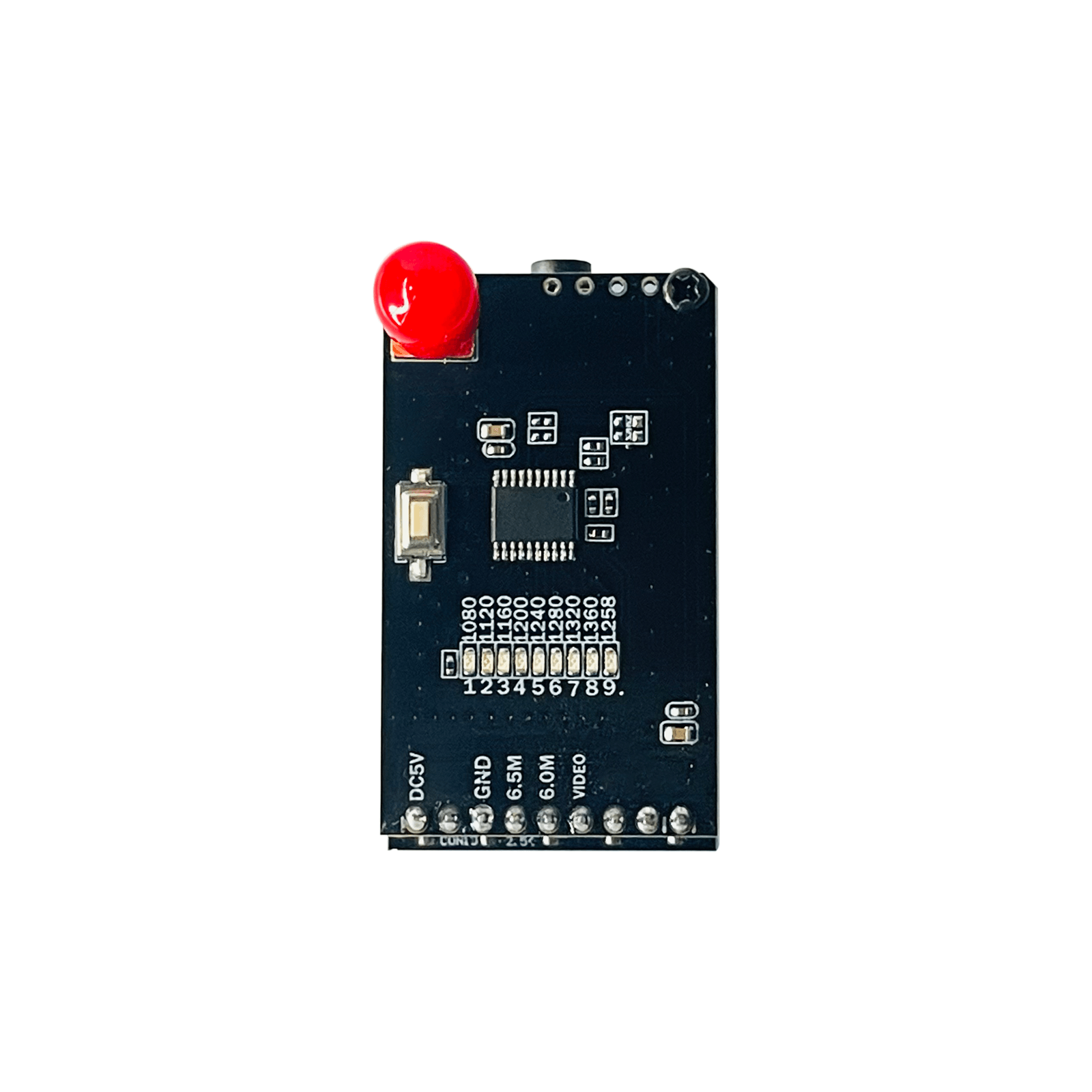

- Button control and LED indicators: Each red LED light displays a different receiving frequency. Short press the button to switch to the next channel, and the LED corresponding to the frequency will light up.
- Power off memory function：After each frequency switch, the system will automatically save the current receiving frequency. When the power is reconnected, the receiving frequency will remain the same as before the power was cut off.
- AV output ：This receiver supports AV output，Use the Video output cable to connect to other screen devices to share the video reception screen in real time.
- Ultra Long Range：Stable and smooth video transmission performance, combined with 1.2GHz high-power VTX can achieve ultra-long-distance FPV flight.
Specifications
- Item Name: VRX 1G2
- Receiving frequency: 9CH (1050MHz to 1380MHz)
- Input voltage：DC 7-36V
- Current Consumption:（ 280±40）mA @5V
- Button control and LED indicators
- On board regulator output: 5V 1A
- RX Sensitivity: -95dBm
- Voltage Standing Wave Ratio: 2:1
- Demodulation System: FM/PLL
- ANT. input impedance: 50Ω, Typ.
- Video Output impedance: 75Ω, Typ.
- Audio Subcarrier Frequency: 6.0MHz (AR) 6.5 MHz (AL)
- RF Connector: SMA
- Weight: 20g ( w/o antanna)

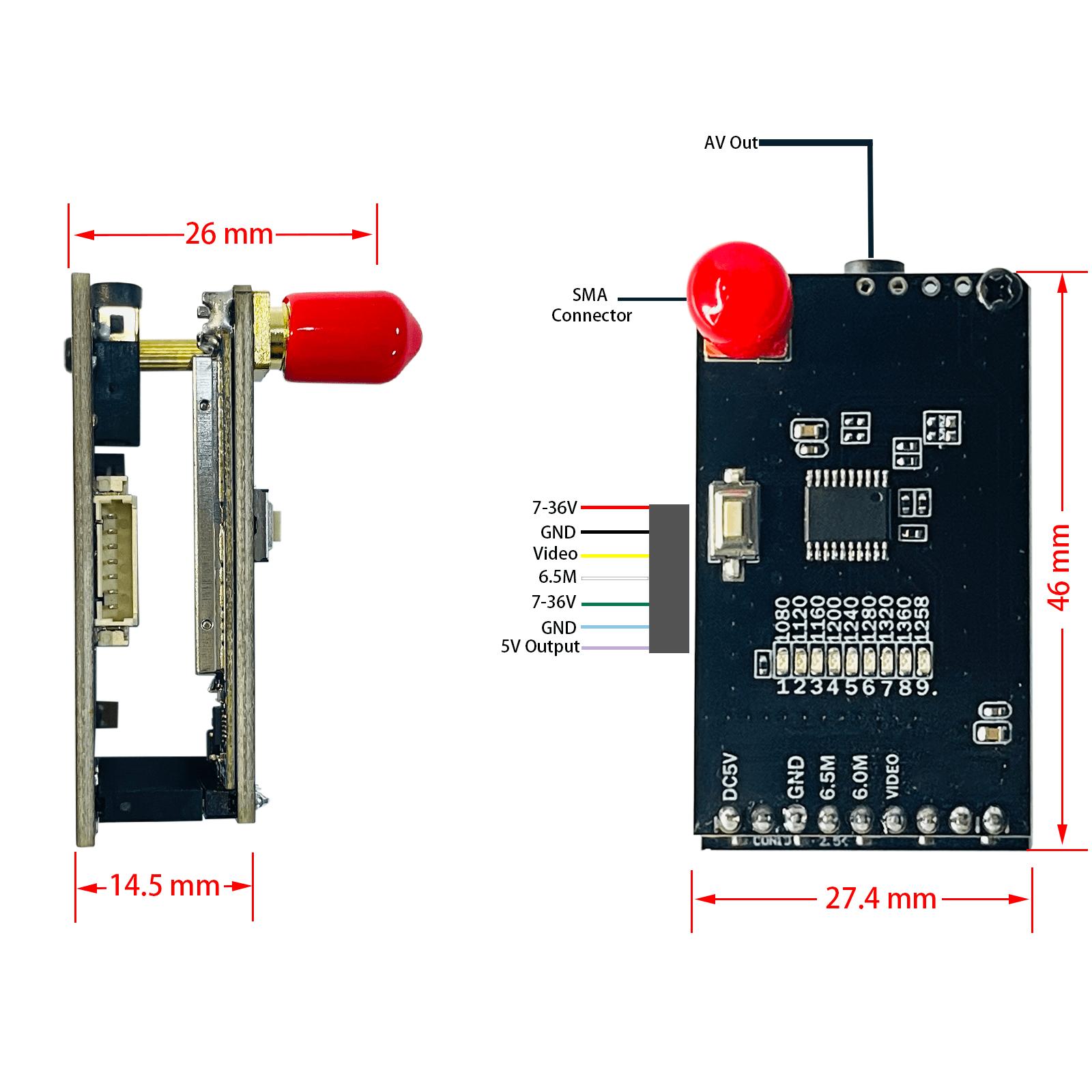

- Size: board 44mm (L)*27mm (W)*27mm (H)

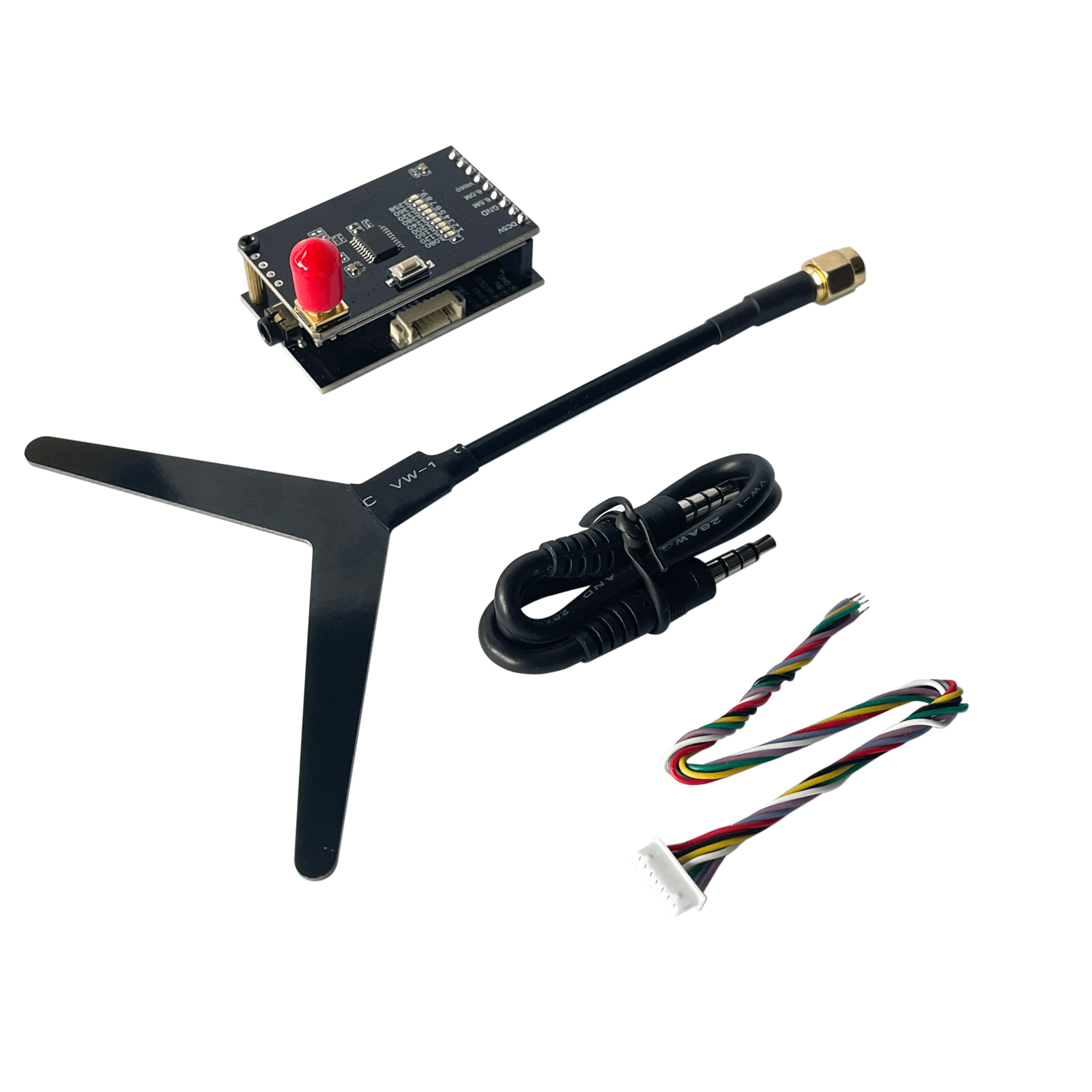

Package Included:
- 1 X 1.2GHz VRX
- 1 X “Y”Type antenna
- 1 X Two-channel Video output cable
- 1 X 7P 1.25 single1 head cable
