Features
-
● With DVR, you can record videos anytime and anywhere;
● Low power consumption;
● Double antenna reception to make the signal more stable;
●Auto-Searching, support a key search frequency;
● 5 Inch 800*480 dot high brightness LCD screen;
● Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand;
● Built-in 3.7V/2000mAh high-capacity Li-ion polymer Battery;
● Universal USB charging interface;
● Real-time video return, Very low time-delay;
● Bilingual menu in support of Chinese and English;
● Support external video signal input;
● Support Audio signal output (You can connect headphones)
Specifications
-
Model
Name
5.8G FPV Goggles

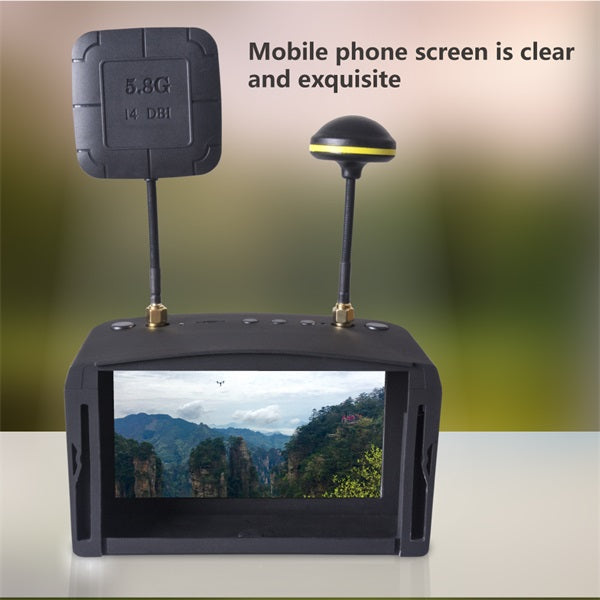

LCD Screen
Screen size: 5 Inch
Resolution: 800*480
Display Ratio: 16:9
View Angle: 6 o'clock
Brightness: 300cd/m² with high brightness backlight LED
Video delay
Video time-delay less than 20ms

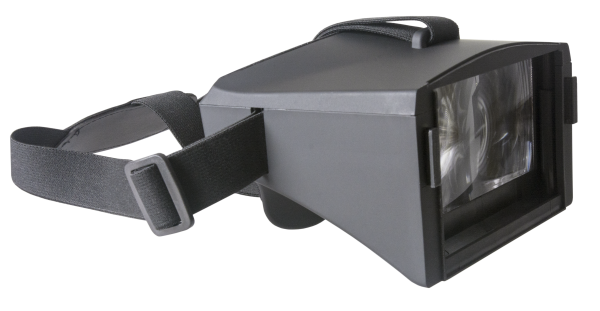

Lens
2.8X Fresnel Lens, 92% transparent rate no distort of light
Interface
Antenna
2 X RP-SMA male
USB
To charge the battery
AV Jack
External video signals input or internal Audio signal output
Card slot
TF-Card, Support up to 64G(C10 recommend)
DVR
REC size: VGA / D1 / HD Selectable
REC sound: ON / OFF Selectable
REC time: OFF / 3min / 5min / 10min Selectable
Frame rate: 30 Frames
Compress format: MJPEG
Record file format: AVI
Languages
English and Chinese
Power Supply
Power adapter: DC5V/2A (USB interface)
Battery: 3.7V/2000mAh,
DVR module ON: Each full charge revive around 2.5hr working time
DVR module OFF: Each full charge revive around 3.5hr working time
Power Consumption:
* Normal mode: The device operating current of 400mA at 3.7V;
* Record Mode : The device operating current of 620mA at 3.7V;
* Built-in battery maximum charge current of 500mA;
Wireless
Frequency Table(MHz)
CH1
CH2
CH3
CH4
CH5
CH6
CH7
CH8
Band A
5865
5845
5825
5805
5785
5765
5745
5725
Band B
5733
5752
5771
5790
5809
5828
5847
5866
Band E
5705
5685
5665
5645
5885
5905
5925
5945
Band F
5740
5760
5780
5800
5820
5840
5860
5880
Band R
5658
5695
5732
5769
5806
5843
5880
5917
Body
Dimension: 180mm * 140mm * 84mm
Weight: 393g(with headband, not included antennas)
Package Included:
- 1 X 800D FPV Goggles
- 1 X FPV Goggles storage bag
- 1 X AC 220V Power Adapter
- 1 X 12V JST to DC charging cable
- 1 X Video input/output cable
